Valve-EGR Air Flow Control (Standard) Connector End View (D57A)

Harness-Family: DIESEL_Jumper

Color: BROWN

Gender: FEMALE

Part Number: 1/07797/98

Part Description: Not Available

Connector No: D57A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Valve-Egr Air Flow Control Connector End View (Standard)
GCWD1087809Courtesy of CHRYSLER

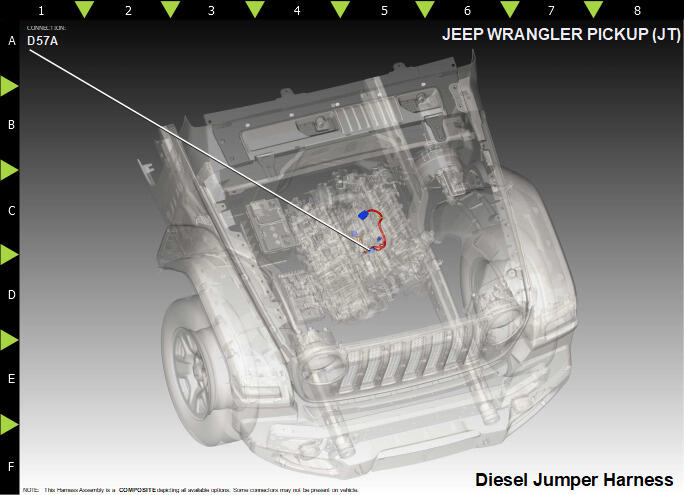

Fig 2: Valve-Egr Air Flow Control Component Location View (Standard)
GCWD1318767Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K313 BN/YE 0.50 5-VOLT SUPPLY N/A
2 K315 BN/BK 0.75 MOTOR (-) N/A
3 K922 BN/GN 0.50 SENSOR RETURN N/A
5 K22 BN/OG 0.50 SENSOR SIGNAL N/A
6 K314 BN/WH 0.75 MOTOR (+) N/A
