Throttle Body (Standard) Connector End View (D6701A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 4-1924292-1

Part Description: Not Available

Connector No: D6701A

Option: Standard

Repair Kit Part Number: 68148107AA

Cavity Count: 6

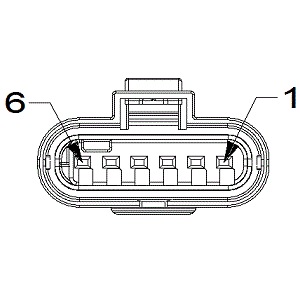

Fig 1: Throttle Body Connector End View (Standard)
GCWD1012882Courtesy of CHRYSLER

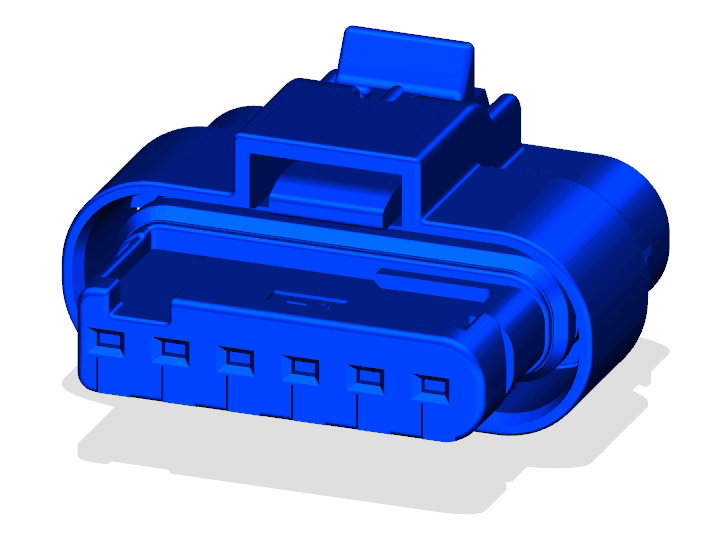

Fig 2: Throttle Body Isometric View (Standard)
GCWD1012315Courtesy of CHRYSLER

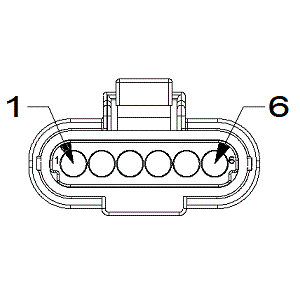

Fig 3: Throttle Body Wire Insertion View (Standard)
GCWD1007316Courtesy of CHRYSLER

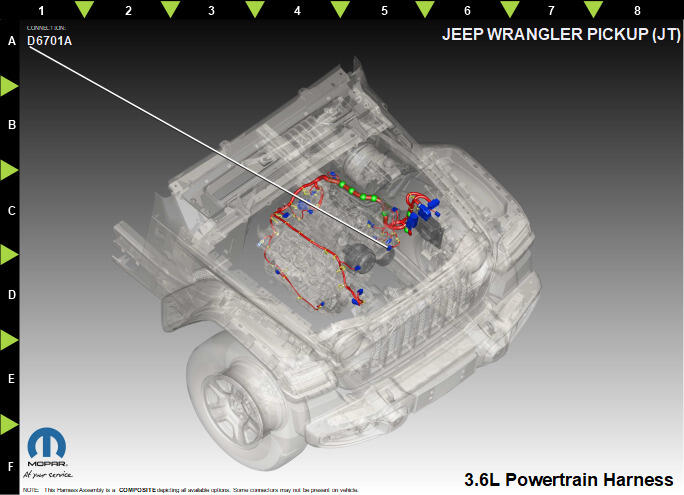

Fig 4: Throttle Body Component Location View (Standard)
GCWD1318425Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K124 DB/GY 0.50 ETC MOTOR (+) N/A
2 K126 DB/GN 0.50 ETC MOTOR (-) N/A
3 K122 BN/DG 0.50 SENSOR SIGNAL 2 N/A
4 F855 PK/YE 0.50 5 VOLT SUPPLY N/A
5 K22 BN/OG 0.50 SENSOR SIGNAL N/A
6 K922 BN/DB 0.50 SENSOR RETURN N/A
