Switch-Window-Rear (Standard) Connector End View (D2303A)

Harness-Family: Console

Color: BLACK

Gender: FEMALE

Part Number: 54201009

Part Description: Not Available

Connector No: D2303A

Option: Standard

Repair Kit Part Number: 05017114AA

Cavity Count: 10

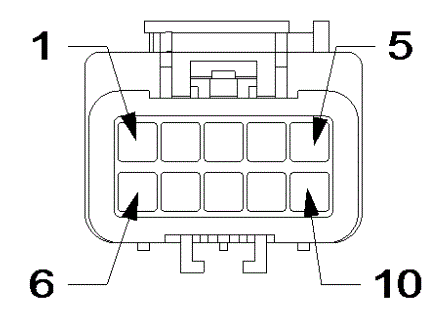

Fig 1: Switch-Window-Rear Connector End View (Standard)

Courtesy of CHRYSLER

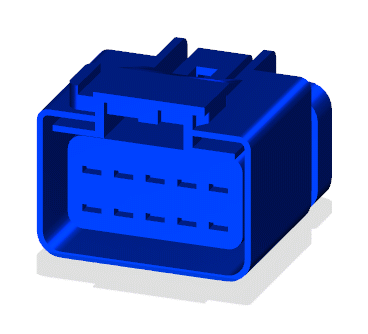

Fig 2: Switch-Window-Rear Isometric View (Standard)

Courtesy of CHRYSLER

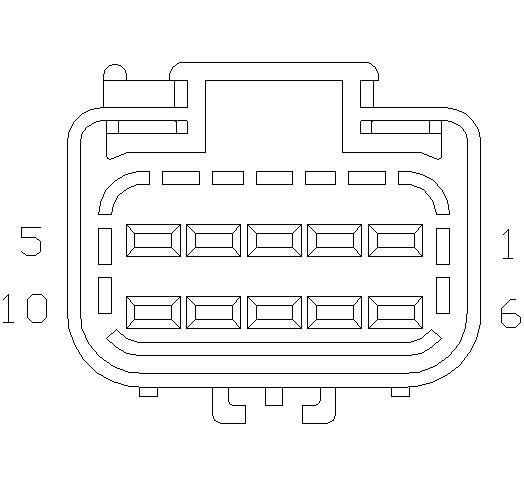

Fig 3: Switch-Window-Rear Wire Insertion View (Standard)

Courtesy of CHRYSLER

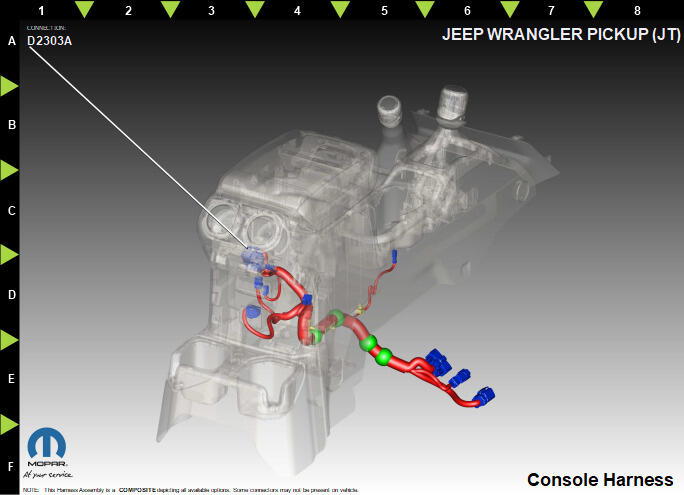

Fig 4: Switch-Window-Rear Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Q612	OG/DB	0.75	MASTER WINDOW SWITCH RIGHT REAR (DOWN)	N/A
2	Q112	OG/BN	2.0	PASSENGER REAR WINDOW DRIVER (UP)	N/A
3	Q212	OG/VT	2.0	PASSENGER REAR WINDOW DRIVER (DOWN)	N/A
4	Q412	OG/BU	0.75	MASTER WINDOW SWITCH RIGHT REAR (UP)	N/A
5	F981	PK/YE	3.0	FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT	N/A
6	Z917	BK	2.0	GROUND	N/A
7	Q411	OG/WH	0.75	MASTER WINDOW SWITCH LEFT REAR (UP)	N/A
8	Q211	BG/BU	2.0	DRIVER REAR WINDOW DRIVER (DOWN)	N/A
9	Q611	OG/GY	0.75	MASTER WINDOW SWITCH LEFT REAR (DOWN)	N/A
10	Q111	BG/YE	2.0	DRIVER REAR WINDOW DRIVER (UP)	N/A
