Switch-Transfer Case Selector (Standard) Connector End View (D2297A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 10092983

Part Description: Not Available

Connector No: D2297A

Option: Standard

Repair Kit Part Number: 68225157AB

Cavity Count: 2

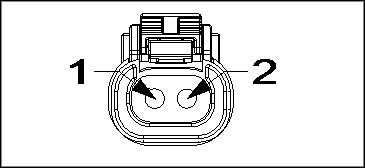

Fig 1: Switch-Transfer Case Selector Connector End View (Standard)

Courtesy of CHRYSLER

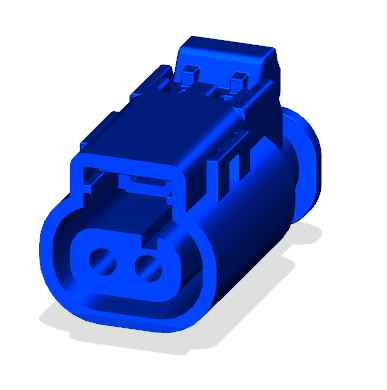

Fig 2: Switch-Transfer Case Selector Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Transfer Case Selector Wire Insertion View (Standard)

Courtesy of CHRYSLER

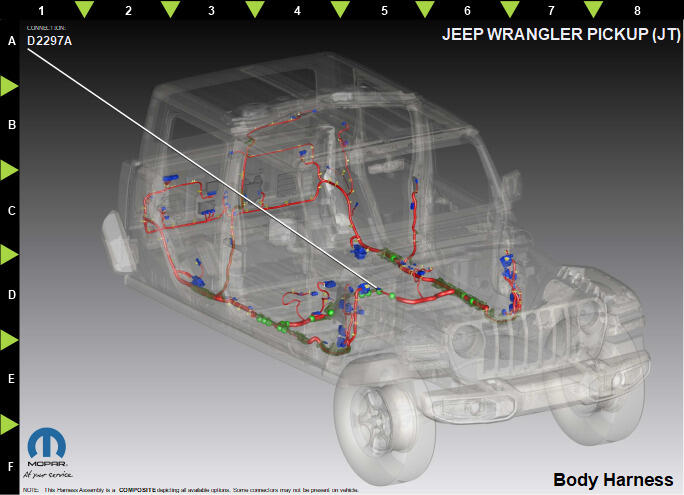

Fig 4: Switch-Transfer Case Selector Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K77	BN/VT	0.35	TRANSFER CASE POSITION SENSOR INPUT	N/A
2	K977	BN/WH	0.35	MODE SELECT	N/A
