Switch-Steering Wheel-Left (Standard) Connector End View (D2577A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 50-57-9410

Part Description: Not Available

Connector No: D2577A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 10

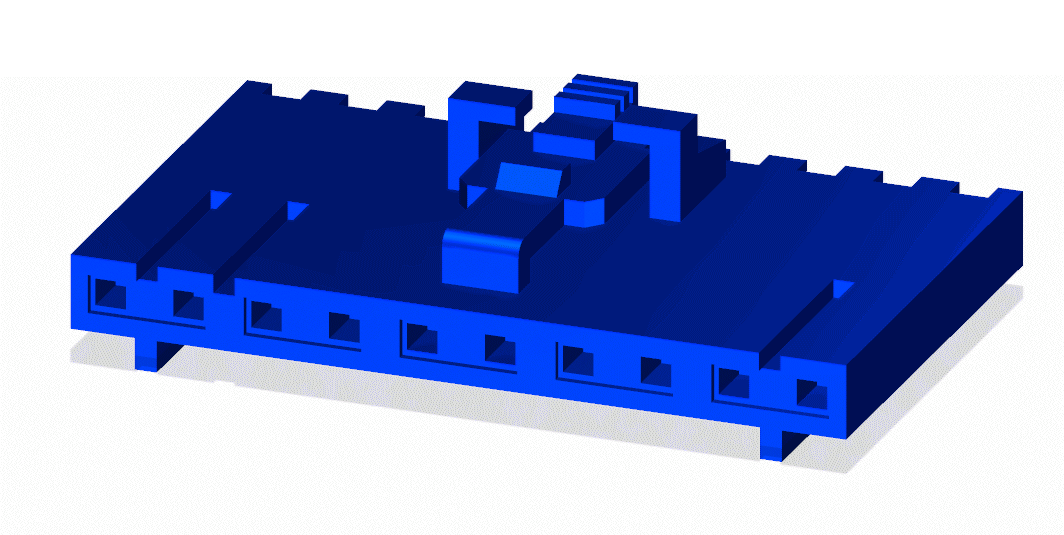

Fig 1: Switch-Steering Wheel-Left Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Switch-Steering Wheel-Left Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Steering Wheel-Left Wire Insertion View (Standard)

Courtesy of CHRYSLER

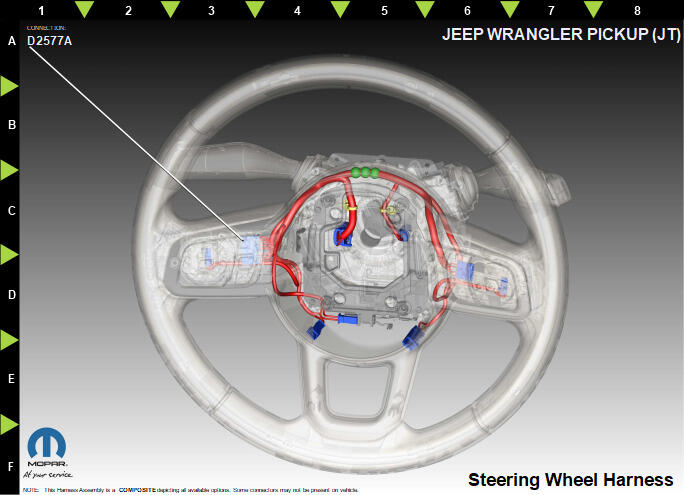

Fig 4: Switch-Steering Wheel-Left Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X43	DB/GY	0.35	REMOTE RADIO SWITCH SIGNAL	N/A
2	X20	GY/WH	0.35	RADIO CONTROL MUX	N/A
3	E4	OG/DB	0.35	STEERING WHEEL SWITCH ILLUMINATION	N/A
4	A92	BK	0.35	FUSED B(+)	N/A
6	Z92	BK	0.35	GROUND	N/A
7	D594	WH	0.35	LIN BUS	N/A
8	C92	BG	0.35	HEATED STEERING WHEEL SIGNAL	N/A
9	X920	GY/OG	0.35	RADIO CONTROL MUX RETURN	N/A
10	G907	BK	0.35	EVIC MUX RETURN	N/A
