Switch-Seat Belt Buckle-Rear Left (Standard) Connector End View (D2899A)

Harness-Family: Seat_Rear_Left

Color: BLACK

Gender: MALE

Part Number: 34899-2080

Part Description: Not Available

Connector No: D2899A

Option: Standard

Repair Kit Part Number: 68475549AA

Cavity Count: 2

Fig 1: Switch-Seat Belt Buckle-Rear Left Connector End View (Standard)
GCWD1252673Courtesy of CHRYSLER

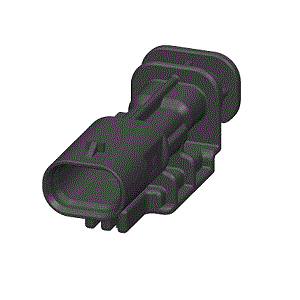

Fig 2: Switch-Seat Belt Buckle-Rear Left Isometric View (Standard)
GCWD1308604Courtesy of CHRYSLER

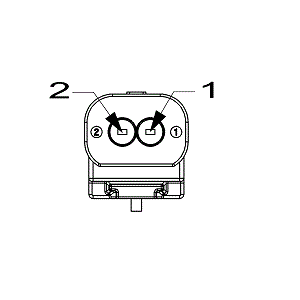

Fig 3: Switch-Seat Belt Buckle-Rear Left Wire Insertion View (Standard)
GCWD1308842Courtesy of CHRYSLER

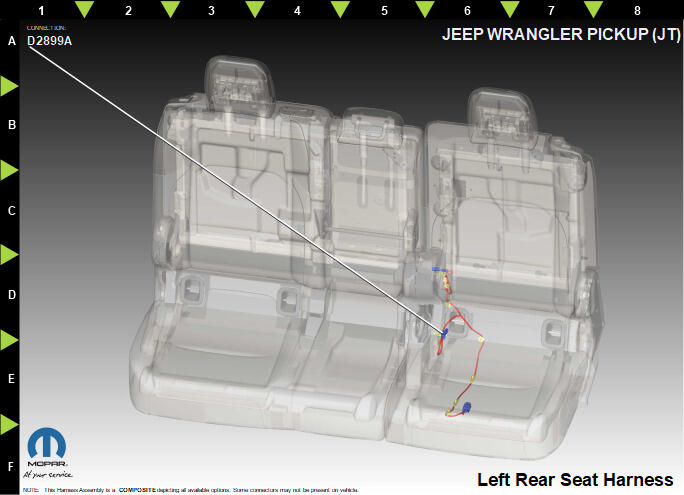

Fig 4: Switch-Seat Belt Buckle-Rear Left Component Location View (Standard)
GCWD1318797Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R71 BU/VT 0.75 LEFT REAR SEAT BELT BUCKLE SWITCH SENSE N/A
2 R91 GN/VT 0.75 REAR SEAT OCCUPANT DETECTION SENSE LEFT N/A
