Switch-Seat Belt Buckle-Rear Center (Standard) Connector End View (D3273A)

Harness-Family: Seat_Rear_Right

Color: GRAY

Gender: MALE

Part Number: 34899-2081

Part Description: Not Available

Connector No: D3273A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

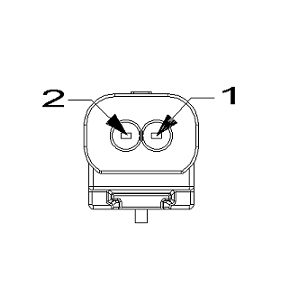

Fig 1: Switch-Seat Belt Buckle-Rear Center Connector End View (Standard)

Courtesy of CHRYSLER

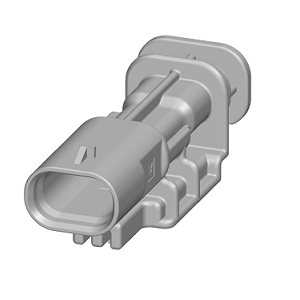

Fig 2: Switch-Seat Belt Buckle-Rear Center Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Seat Belt Buckle-Rear Center Wire Insertion View (Standard)

Courtesy of CHRYSLER

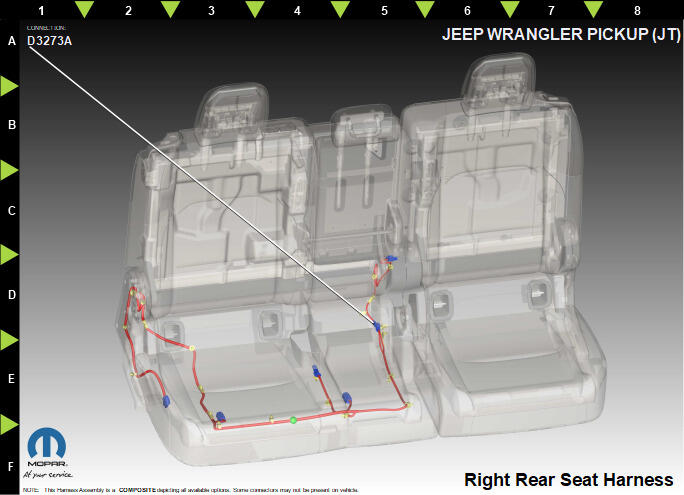

Fig 4: Switch-Seat Belt Buckle-Rear Center Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R27	BU/OG	0.75	2ND ROW SEAT BELT SWITCH SENSE	N/A
2	R90	GN	0.75	REAR SEAT OCCUPANT DETECTION SENSE CENTER	N/A
