Switch-Remote Radio-Left (Standard) Connector End View (D2276A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 50-57-9402

Part Description: INSULATOR

Connector No: D2276A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Switch-Remote Radio-Left Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Switch-Remote Radio-Left Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Remote Radio-Left Wire Insertion View (Standard)

Courtesy of CHRYSLER

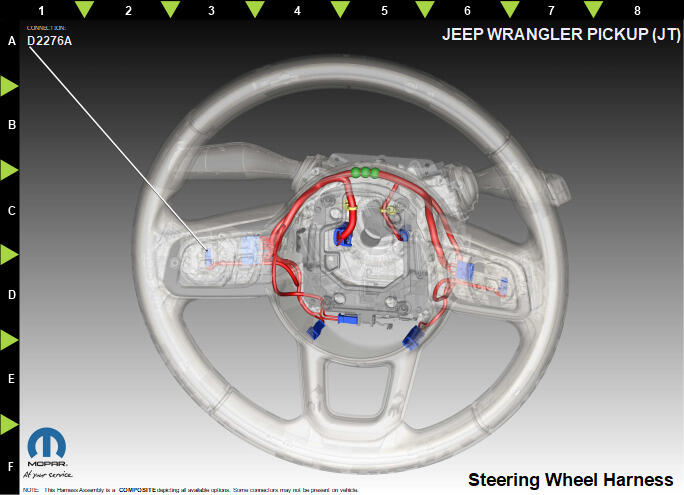

Fig 4: Switch-Remote Radio-Left Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X920	GY/OG	0.35	RADIO CONTROL MUX RETURN	N/A
2	X43	DB/GY	0.35	REMOTE RADIO SWITCH SIGNAL	N/A
