Switch-Mirror (Standard) Connector End View (D2272A)

Harness-Family: Door_Driver_2

Color: BLACK

Gender: FEMALE

Part Number: 807-999-001

Part Description: Not Available

Connector No: D2272A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 8

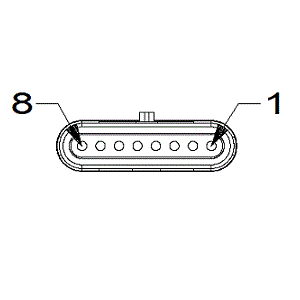

Fig 1: Switch-Mirror Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Switch-Mirror Isometric View (Standard)

Courtesy of CHRYSLER

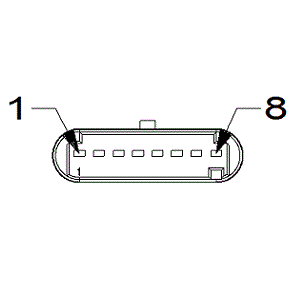

Fig 3: Switch-Mirror Wire Insertion View (Standard)

Courtesy of CHRYSLER

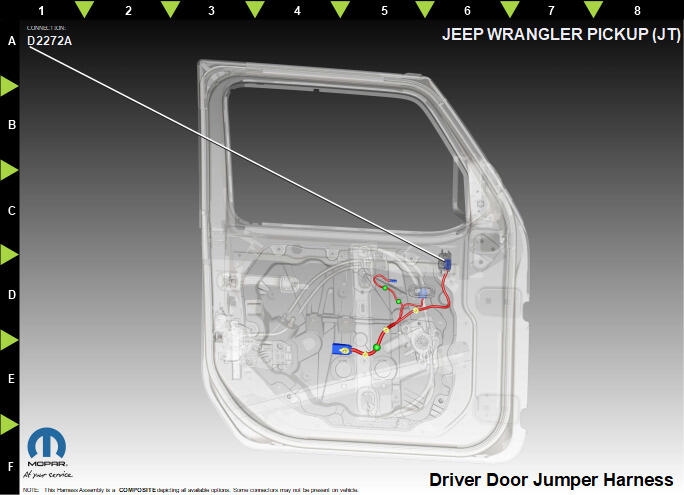

Fig 4: Switch-Mirror Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F408	PK/GN	0.50	MIRROR SWITCH SUPPLY	N/A
2	E12	OG/GY	0.50	PANEL LAMPS DRIVER	N/A
3	P72	BG/GY	0.50	PASSENGER MIRROR VERTICAL DRIVER	LHD
3	P71	BG/DG	0.50	DRIVER MIRROR VERTICAL DRIVER	RHD
4	P74	BG/OG	0.50	PASSENGER MIRROR HORIZONTAL DRIVER	LHD
4	P75	BG/GN	0.50	DRIVER MIRROR HORIZONTAL DRIVER	RHD
5	P76	BG/BU	0.50	MIRROR COMMON DRIVER	N/A
6	P75	BG/GN	0.50	DRIVER MIRROR HORIZONTAL DRIVER	LHD
6	P74	BG/OG	0.50	PASSENGER MIRROR HORIZONTAL DRIVER	RHD
7	P71	BG/DG	0.50	DRIVER MIRROR VERTICAL DRIVER	LHD
7	P72	BG/GY	0.50	PASSENGER MIRROR VERTICAL DRIVER	RHD
8	Z911	BK	0.50	GROUND	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
