Switch-Horn (Standard) Connector End View (D2246A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 1-1718333-1

Part Description: Not Available

Connector No: D2246A

Option: Standard

Repair Kit Part Number: 68364265AA

Cavity Count: 2

Fig 1: Switch-Horn Connector End View (Standard)

Courtesy of CHRYSLER

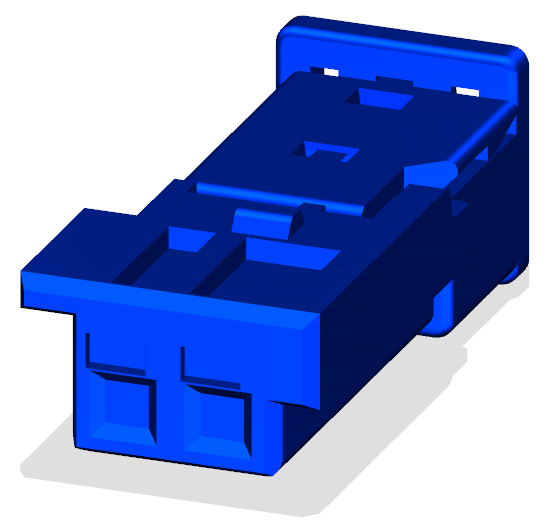

Fig 2: Switch-Horn Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Horn Wire Insertion View (Standard)

Courtesy of CHRYSLER

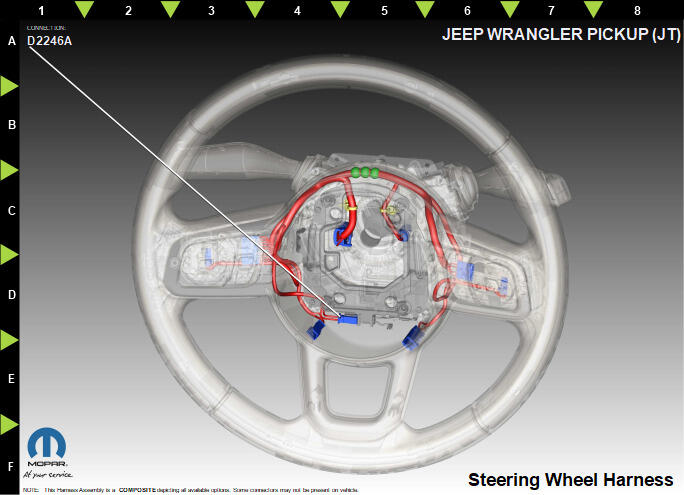

Fig 4: Switch-Horn Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X3	DB/BK	0.35	HORN SWITCH SENSE	N/A
2	Z92	BK	0.35	GROUND	N/A
