Switch-Hood Ajar (Standard) Connector End View (D2245A)

Harness-Family: Front_End_Module

Color: BLACK

Gender: FEMALE

Part Number: 1495-1000

Part Description: Not Available

Connector No: D2245A

Option: Standard

Repair Kit Part Number: 05017129AA

Cavity Count: 2

Fig 1: Switch-Hood Ajar Connector End View (Standard)

Courtesy of CHRYSLER

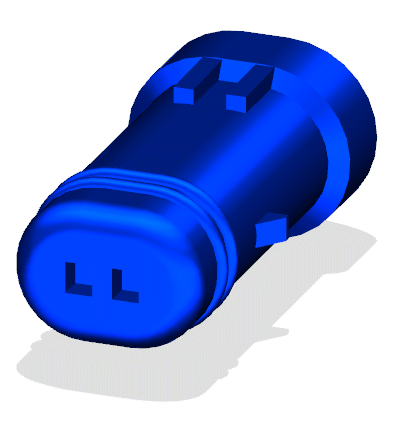

Fig 2: Switch-Hood Ajar Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Hood Ajar Wire Insertion View (Standard)

Courtesy of CHRYSLER

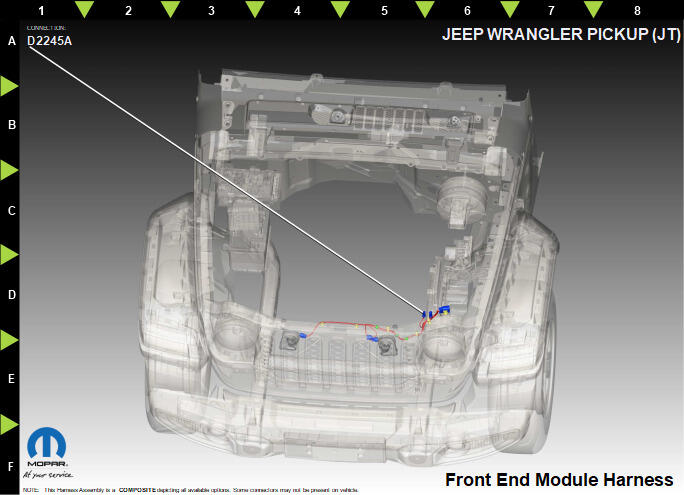

Fig 4: Switch-Hood Ajar Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G70	VT/BU	0.75	HOOD AJAR SWITCH SENSE	N/A
2	G931	VT/BN	0.75	SENSOR GROUND	N/A
