Switch-Door Lock-Driver (Standard) Connector End View (D2226A)

Harness-Family: Door_Driver_2

Color: BLACK

Gender: FEMALE

Part Number: 805-122-581

Part Description: Not Available

Connector No: D2226A

Option: Standard

Repair Kit Part Number: 68396618AA

Cavity Count: 4

Fig 1: Switch-Door Lock-Driver Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Switch-Door Lock-Driver Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Door Lock-Driver Wire Insertion View (Standard)

Courtesy of CHRYSLER

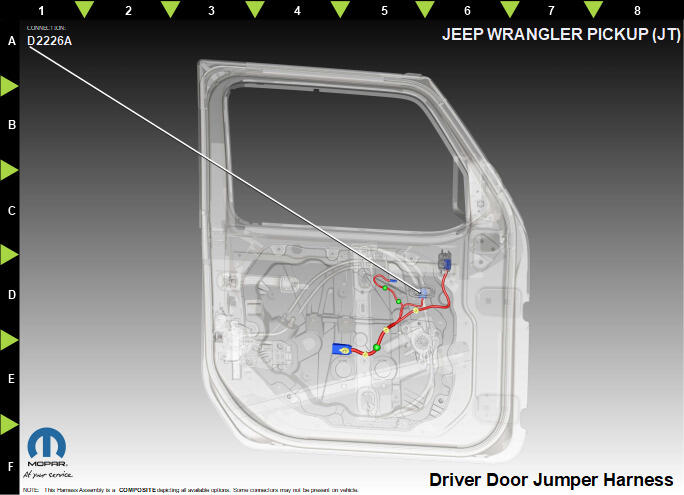

Fig 4: Switch-Door Lock-Driver Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	E12	OG/GY	0.35	PANEL LAMPS DRIVER	N/A
2	G161	VT/DG	0.35	LEFT DOOR LOCK SWITCH STATUS	N/A
3	P371	BG/BN	0.35	DOOR LOCK SW RTN DRIV	N/A
4	Z911	BK	0.35	GROUND	N/A
