Switch-Console-Overhead (Export) Connector End View (D3159A)

Harness-Family: Mirror

Color: BLACK

Gender: FEMALE

Part Number: 1-638514-6

Part Description: Not Available

Connector No: D3159A

Option: EXPORT

Repair Kit Part Number: Not Available

Cavity Count: 6

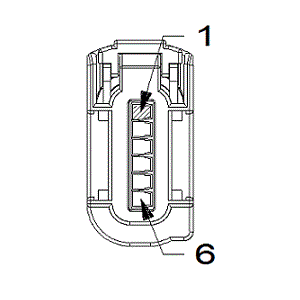

Fig 1: Switch-Console-Overhead Connector End View (EXPORT)

Courtesy of CHRYSLER

Fig 2: Switch-Console-Overhead Isometric View (EXPORT)

Courtesy of CHRYSLER

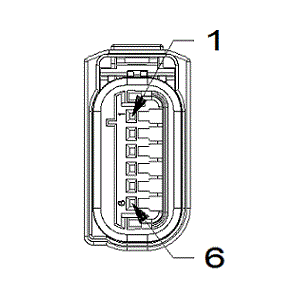

Fig 3: Switch-Console-Overhead Wire Insertion View (EXPORT)

Courtesy of CHRYSLER

Fig 4: Switch-Console-Overhead Component Location View (EXPORT)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	X801	DB	0.35	EMERGENCY SWITCH LED 1 SUPPLY	N/A
3	X802	DG	0.35	EMERGENCY SWITCH LED 2 SUPPLY	N/A
4	X803	BN	0.35	EMERGENCY COMMUNICATION BUTTON SUPPLY	N/A
5	X804	OG	0.35	EMERGENCY BACKLIGHT CONTROL	N/A
6	X805	OG/BK	0.35	EMERGENCY SWITCH RETURN	N/A
