Switch-Console-Overhead (Except Export) Connector End View (D3159A)

Harness-Family: Mirror

Color: BLACK

Gender: FEMALE

Part Number: 638514-1

Part Description: Not Available

Connector No: D3159A

Option: EXCEPT EXPORT

Repair Kit Part Number: 68032364AA

Cavity Count: 6

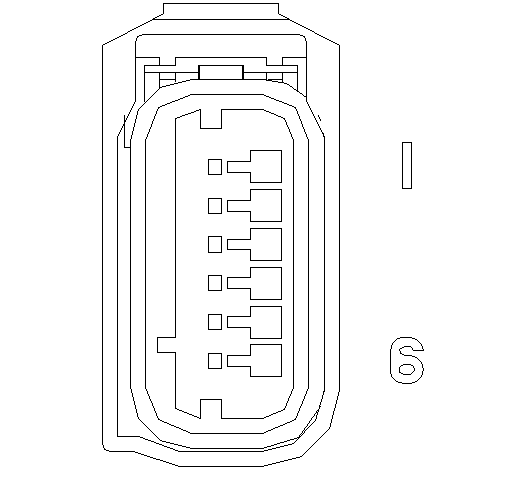

Fig 1: Switch-Console-Overhead Connector End View (EXCEPT EXPORT)

Courtesy of CHRYSLER

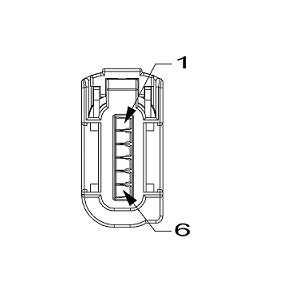

Fig 2: Switch-Console-Overhead Isometric View (EXCEPT EXPORT)

Courtesy of CHRYSLER

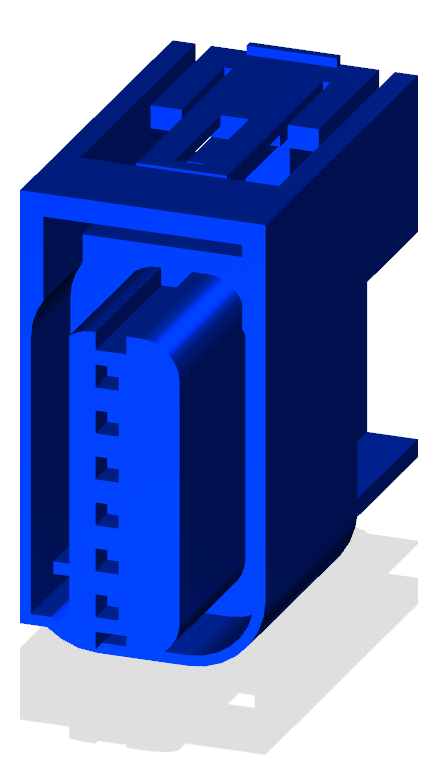

Fig 3: Switch-Console-Overhead Wire Insertion View (EXCEPT EXPORT)

Courtesy of CHRYSLER

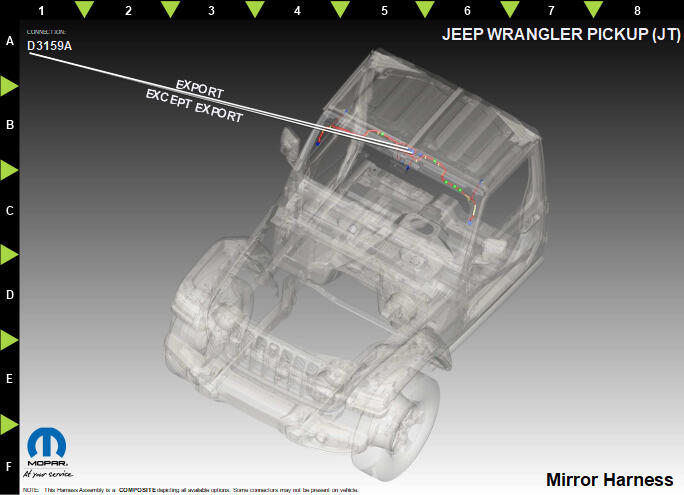

Fig 4: Switch-Console-Overhead Component Location View (EXCEPT EXPORT)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A238	RD/BU	0.50	FUSED B(+)	N/A
2	F916	PK/BU	0.50	FUSED IGNITION RUN/START	N/A
3	E12	OG/GY	0.35	PANEL LAMPS DRIVER	N/A
4	D402	OG/VT	0.50	LIN BUS CBC 2	N/A
5	R168	GN/WH	0.50	AIRBAG OFF LAMP PASSENGER	N/A
6	Z910	BK	0.50	GROUND	N/A
