Switch-Clutch Interlock (Late Build) Connector End View (D2212A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 33471-3339

Part Description: Not Available

Connector No: D2212A

Option: LATE BUILD

Repair Kit Part Number: Not Available

Cavity Count: 3

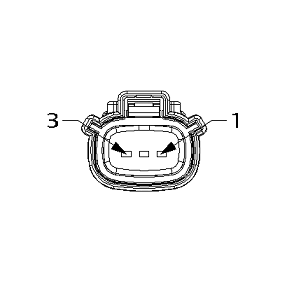

Fig 1: Switch-Clutch Interlock Connector End View (LATE BUILD)

Courtesy of CHRYSLER

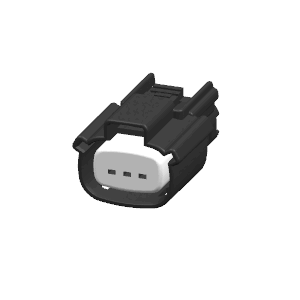

Fig 2: Switch-Clutch Interlock Isometric View (LATE BUILD)

Courtesy of CHRYSLER

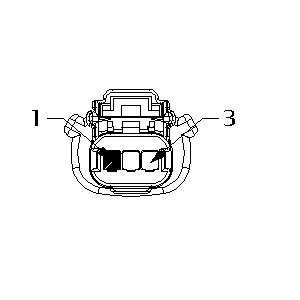

Fig 3: Switch-Clutch Interlock Wire Insertion View (LATE BUILD)

Courtesy of CHRYSLER

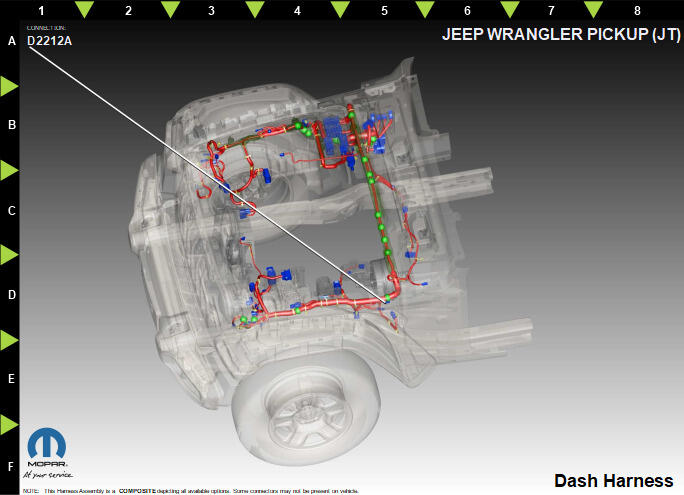

Fig 4: Switch-Clutch Interlock Component Location View (LATE BUILD)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	T12	DG/YE	0.35	CLUTCH INTERLOCK SIGNAL	N/A
3	Z907	BK	0.50	GROUND	N/A
