Switch-Clutch Interlock (Early Build) Connector End View (D2212A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 33471-0339

Part Description: MX150 STANDARD 1 ROW CONNECTOR HOUSING

Connector No: D2212A

Option: EARLY BUILD

Repair Kit Part Number: 68358151AA

Cavity Count: 3

Fig 1: Switch-Clutch Interlock Connector End View (EARLY BUILD)

Courtesy of CHRYSLER

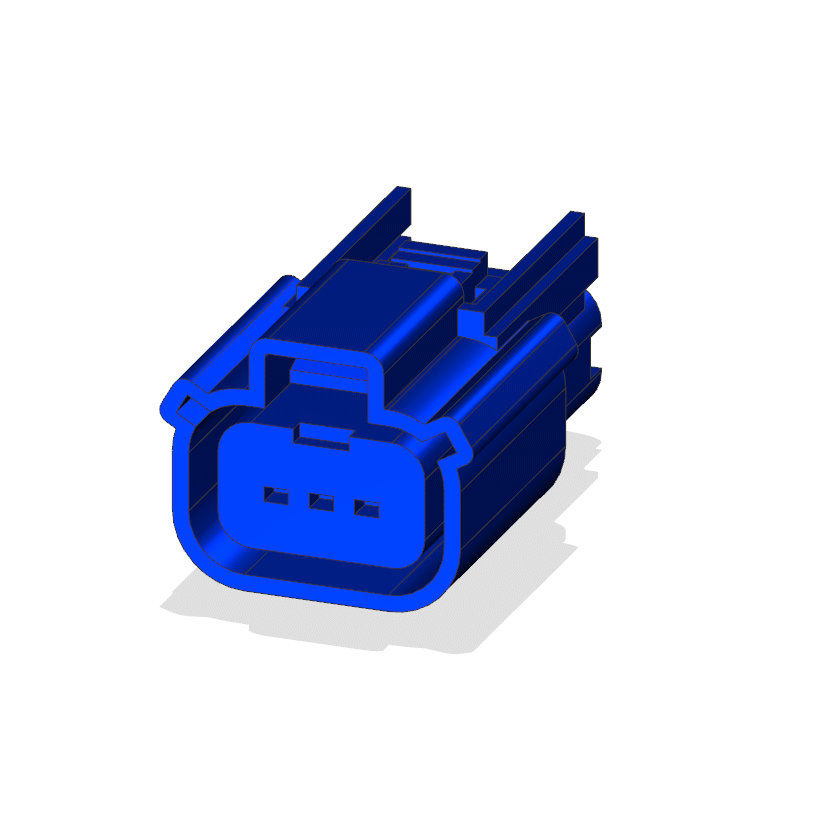

Fig 2: Switch-Clutch Interlock Isometric View (EARLY BUILD)

Courtesy of CHRYSLER

Fig 3: Switch-Clutch Interlock Wire Insertion View (EARLY BUILD)

Courtesy of CHRYSLER

Fig 4: Switch-Clutch Interlock Component Location View (EARLY BUILD)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	T12	DG/YE	0.35	CLUTCH INTERLOCK SIGNAL	N/A
3	Z907	BK	0.50	GROUND	N/A
