Switch-Bank-Upper (Standard) Connector End View (D2321A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 15532124

Part Description: Not Available

Connector No: D2321A

Option: Standard

Repair Kit Part Number: 68496341AA

Cavity Count: 10

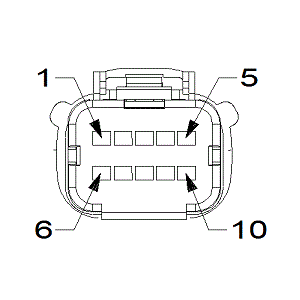

Fig 1: Switch-Bank-Upper Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Switch-Bank-Upper Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Bank-Upper Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Switch-Bank-Upper Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A232	RD/VT	0.35	FUSED B(+)	N/A
2	N0	NA	0	NO CONNECT	N/A
3	P820	BN/OG	0.35	AUX 1 RELAY CTRL SIGNAL	N/A
4	P821	BN/VT	0.35	AUX 2 RELAY CTRL SIGNAL	N/A
5	N0	NA	0	NO CONNECT	N/A
6	P822	BN/WH	0.35	AUX 3 RELAY CTRL SIGNAL	N/A
7	P823	BN/GY	0.35	AUX 4 RELAY CTRL SIGNAL	N/A
8	N0	NA	0	NO CONNECT	N/A
9	D401	OG	0.35	LIN BUS CBC 1	N/A
10	Z910	BK/YE	0.50	GROUND	N/A
