Speaker-Subwoofer (Standard) Connector End View (D5920A)

Harness-Family: Body

Color: GRAY

Gender: FEMALE

Part Number: 7283-6454-40

Part Description: KAIZEN YESC 1.5MM UNSEALED SUB ASSEMBLY

Connector No: D5920A

Option: Standard

Repair Kit Part Number: 68030094AA

Cavity Count: 6

Fig 1: Speaker-Subwoofer Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Speaker-Subwoofer Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Speaker-Subwoofer Wire Insertion View (Standard)

Courtesy of CHRYSLER

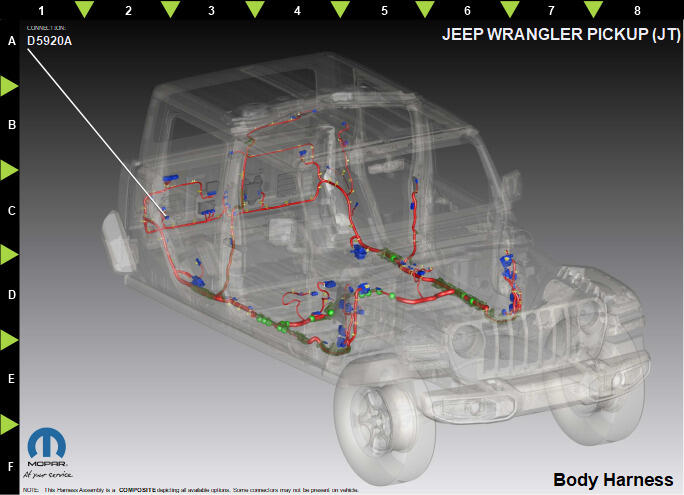

Fig 4: Speaker-Subwoofer Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X300	GY/BN	0.75	AMPLIFIED SUBWOOFER 1 (+)	N/A
2	X390	DG/BN	0.75	AMPLIFIED SUBWOOFER 1 (-)	N/A
3	X301	GY/WH	0.75	AMPLIFIED SUBWOOFER 2 (+)	N/A
4	X391	DG/WH	0.75	AMPLIFIED SUBWOOFER 2 (-)	N/A
5	X305	GY/OG	0.75	AMPLIFIED SUBWOOFER 3 (+)	N/A
6	X395	DG/OG	0.75	AMPLIFIED SUBWOOFER 3 (-)	N/A
