Speaker-Instrument Panel-Lower Right (Standard) Connector End View (D5934A)

Harness-Family: IP

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-3440-40

Part Description: KAIZEN YESC CONNECTOR SUB ASSEMBLY

Connector No: D5934A

Option: Standard

Repair Kit Part Number: 68032286AA

Cavity Count: 3

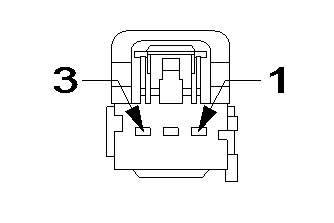

Fig 1: Speaker-Instrument Panel-Lower Right Connector End View (Standard)

Courtesy of CHRYSLER

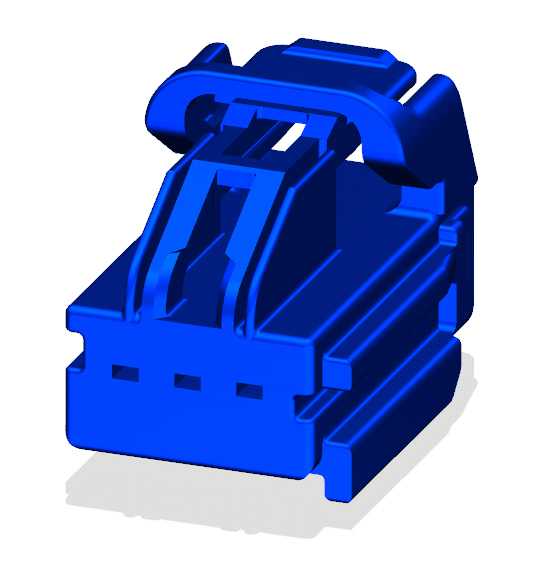

Fig 2: Speaker-Instrument Panel-Lower Right Isometric View (Standard)

Courtesy of CHRYSLER

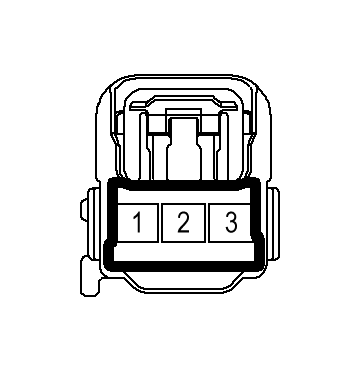

Fig 3: Speaker-Instrument Panel-Lower Right Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Speaker-Instrument Panel-Lower Right Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X202	DG/VT	0.75	RIGHT FRONT SPEAKER (+)	N/A
2	N0	NA	0	NO CONNECT	N/A
3	X292	DG/YE	0.75	RIGHT FRONT SPEAKER (-)	N/A
