Speaker-Instrument Panel-Left (Standard) Connector End View (D5915A)

Harness-Family: IP

Color: WHITE

Gender: FEMALE

Part Number: 174463-1

Part Description: .070 SRS MLC 2POS PLUG HOUSING

Connector No: D5915A

Option: Standard

Repair Kit Part Number: 68040489AA

Cavity Count: 2

Fig 1: Speaker-Instrument Panel-Left Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Speaker-Instrument Panel-Left Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Speaker-Instrument Panel-Left Wire Insertion View (Standard)

Courtesy of CHRYSLER

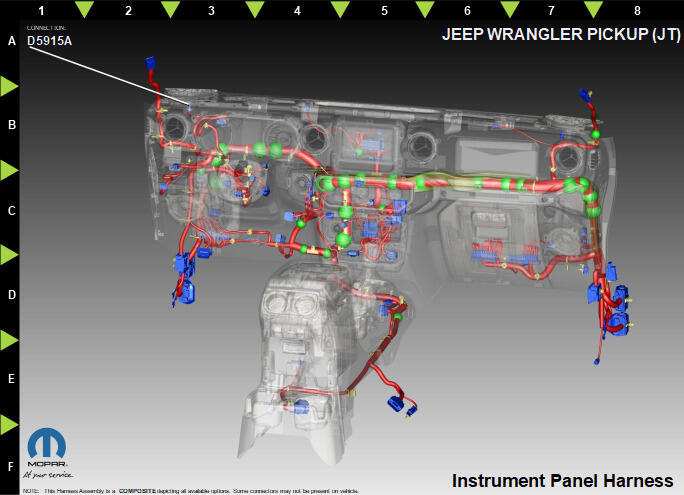

Fig 4: Speaker-Instrument Panel-Left Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X201	GY/VT	0.75	LEFT FRONT SPEAKER (+)	BASE
1	X209	GY/OG	0.75	AMPLIFIED LEFT I/P SPEAKER (+)	PREMIUM
2	X291	GY/YE	0.75	LEFT FRONT SPEAKER (-)	BASE
2	X299	GY/YE	0.75	AMPLIFIED LEFT I/P SPEAKER (-)	PREMIUM
