Solenoid-VVT Exhaust 2/2 (Standard) Connector End View (D2485A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 805-120-531

Part Description: Not Available

Connector No: D2485A

Option: Standard

Repair Kit Part Number: 68475547AA

Cavity Count: 2

Fig 1: Solenoid-Vvt Exhaust 2/2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Solenoid-Vvt Exhaust 2/2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Solenoid-Vvt Exhaust 2/2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

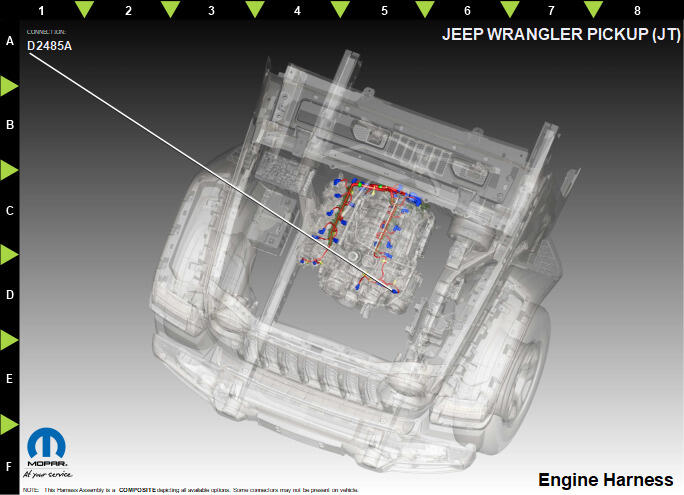

Fig 4: Solenoid-Vvt Exhaust 2/2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K277	DB	0.35	CONTROL	N/A
2	Z904	BK	0.35	GROUND	N/A
