Solenoid-Skip Shift (Standard) Connector End View (D3275A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1-1670918-1

Part Description: Not Available

Connector No: D3275A

Option: Standard

Repair Kit Part Number: 68268751AA

Cavity Count: 4

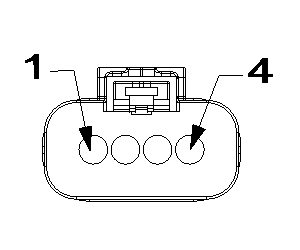

Fig 1: Solenoid-Skip Shift Connector End View (Standard)

Courtesy of CHRYSLER

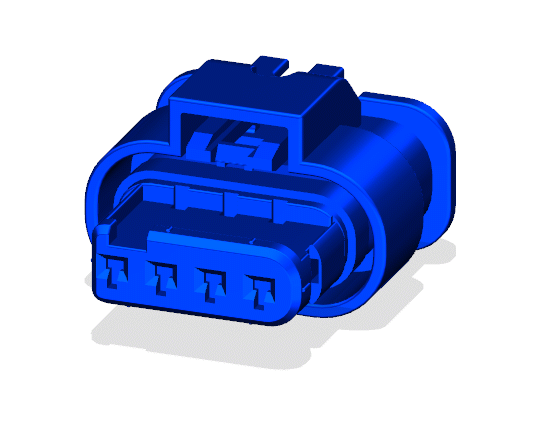

Fig 2: Solenoid-Skip Shift Isometric View (Standard)

Courtesy of CHRYSLER

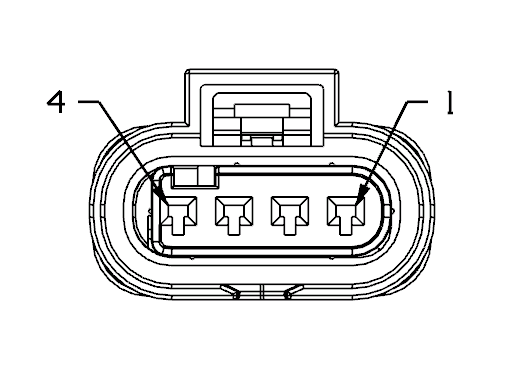

Fig 3: Solenoid-Skip Shift Wire Insertion View (Standard)

Courtesy of CHRYSLER

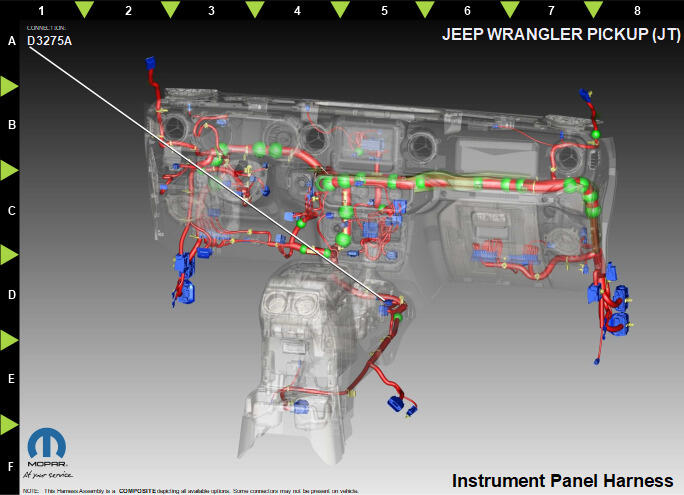

Fig 4: Solenoid-Skip Shift Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F344	BN/GY	1.0	FUSED ASD RELAY OUTPUT	N/A
2	K333	DB/BU	0.35	1ST GEAR LOCK-OUT CONTROL	N/A
3	F344	BN/GY	1.0	FUSED ASD RELAY OUTPUT	N/A
4	K33	DB/GN	0.35	2ND GEAR LOCK-OUT CONTROL	N/A
