Solenoid-A/C Compressor (3.6L Gas) Connector End View (D76A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 805-120-532

Part Description: Not Available

Connector No: D76A

Option: 3.6L GAS

Repair Kit Part Number: 68475548AA

Cavity Count: 2

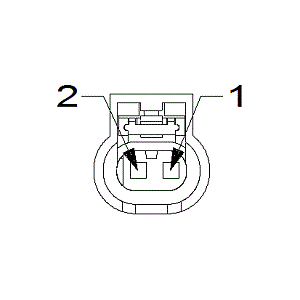

Fig 1: Solenoid-A/c Compressor Connector End View (3.6L GAS)

Courtesy of CHRYSLER

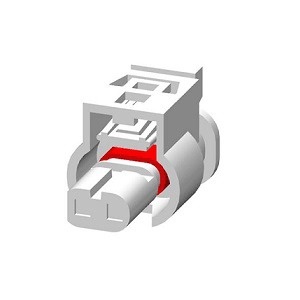

Fig 2: Solenoid-A/c Compressor Isometric View (3.6L GAS)

Courtesy of CHRYSLER

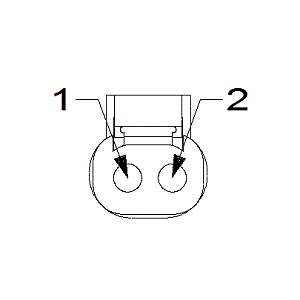

Fig 3: Solenoid-A/c Compressor Wire Insertion View (3.6L GAS)

Courtesy of CHRYSLER

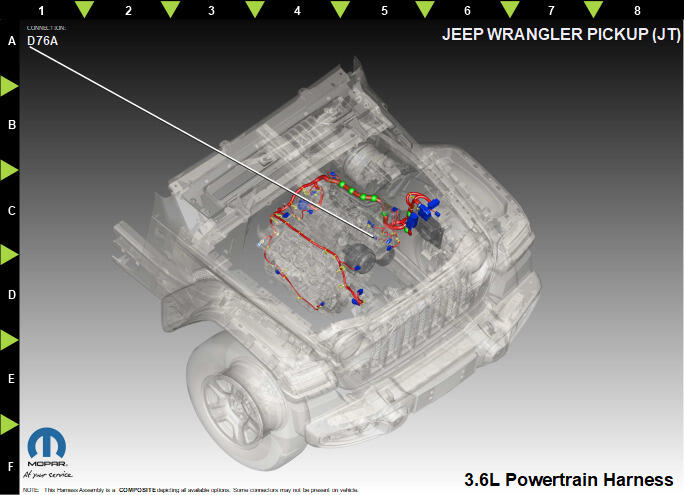

Fig 4: Solenoid-A/c Compressor Component Location View (3.6L GAS)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z907	BK	0.35	GROUND	N/A
2	C27	BU/WH	0.50	A/C COMPRESSOR CONTROL	N/A
