Sf710 (Standard) Connector End View (Sf710)

Harness-Family: HVAC

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SF710

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: Sf710 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

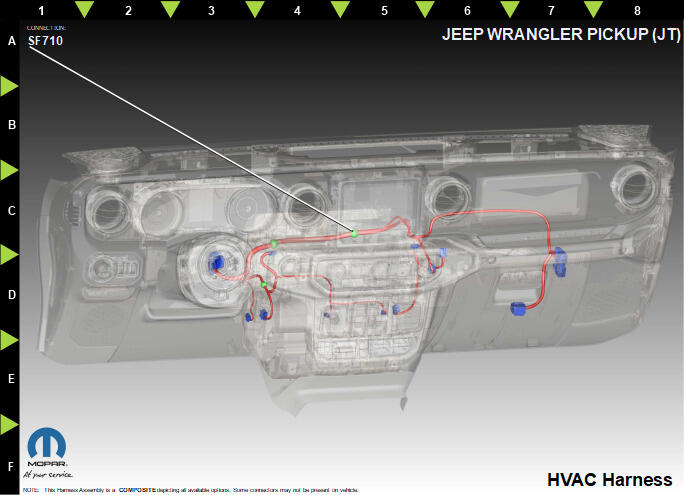

Fig 2: Sf710 Component Location View (Standard)
GCWD1318872Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F710 BU/PK 0.35 5V REFERENCE SIGNAL N/A
2 F710 BU/PK 0.35 5V REFERENCE SIGNAL N/A
3 F710 BU/PK 0.35 5V REFERENCE SIGNAL N/A
4 F710 BU/PK 0.35 5V REFERENCE SIGNAL N/A
5 F710 BU/PK 0.35 5V REFERENCE SIGNAL N/A
