Sensor-Wheel Speed-Abs-Left Front (Standard) Connector End View (D1572A)

Harness-Family: Chassis_LT

Color: BLACK

Gender: FEMALE

Part Number: 34062-0047

Part Description: Not Available

Connector No: D1572A

Option: Standard

Repair Kit Part Number: 05183448AA

Cavity Count: 2

Fig 1: Sensor-Wheel Speed-Abs-Left Front Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Wheel Speed-Abs-Left Front Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Wheel Speed-Abs-Left Front Wire Insertion View (Standard)

Courtesy of CHRYSLER

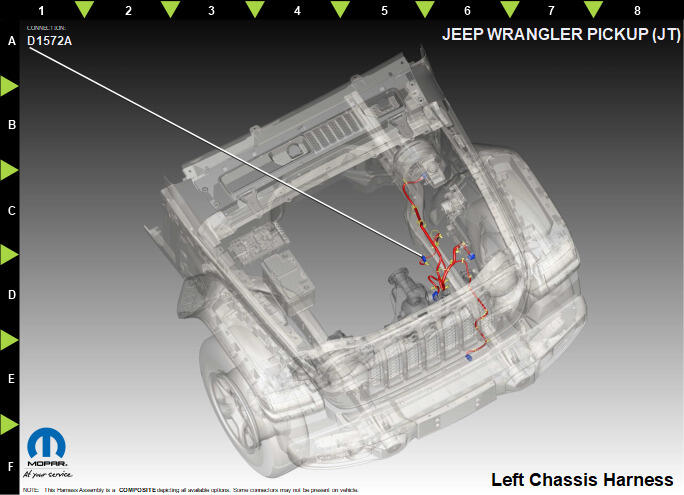

Fig 4: Sensor-Wheel Speed-Abs-Left Front Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	B9	DG/GN	0.35	LEFT FRONT WHEEL SPEED SENSOR (+)	N/A
2	B8	DG/BG	0.35	LEFT FRONT WHEEL SPEED SENSOR (-)	N/A
