Sensor-Washer Fluid Level-Front (Except RHD) Connector End View (D2299A)

Harness-Family: Jumper_Washer

Color: GRAY

Gender: FEMALE

Part Number: 7287-8378-40

Part Description: Not Available

Connector No: D2299A

Option: EXCEPT RHD

Repair Kit Part Number: 68045333AA

Cavity Count: 2

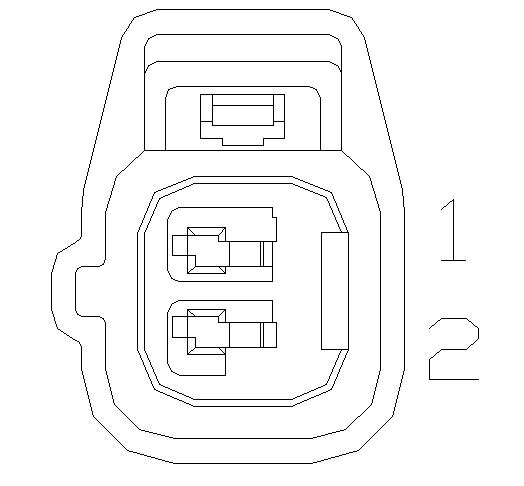

Fig 1: Sensor-Washer Fluid Level-Front Connector End View (EXCEPT RHD)
GCWD1006289Courtesy of CHRYSLER

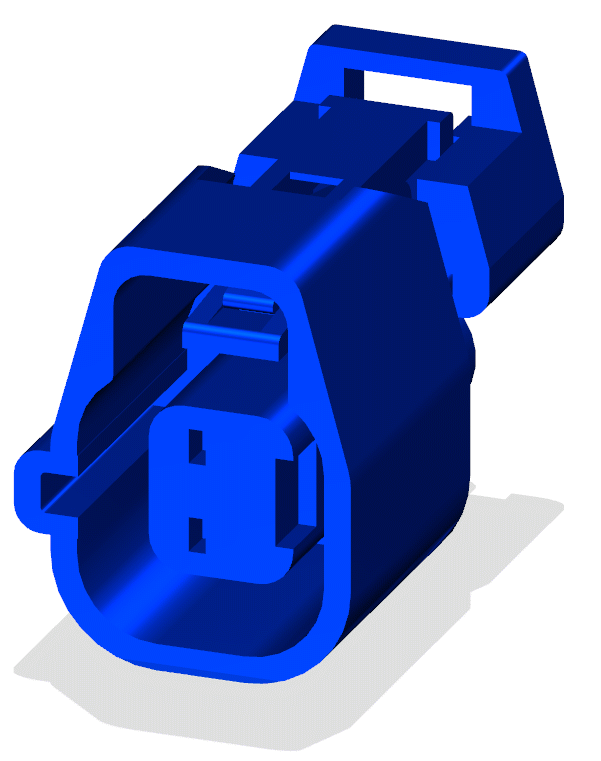

Fig 2: Sensor-Washer Fluid Level-Front Isometric View (EXCEPT RHD)
GCWD1086892Courtesy of CHRYSLER

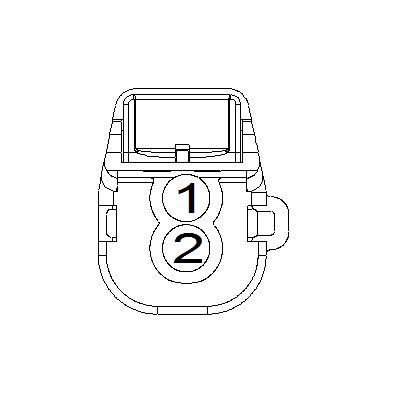

Fig 3: Sensor-Washer Fluid Level-Front Wire Insertion View (EXCEPT RHD)
GCWD1010377Courtesy of CHRYSLER
Fig 4: Sensor-Washer Fluid Level-Front Component Location View (EXCEPT RHD)
GCWD1318490Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 W11 BN/BG 0.80 LOW WASH SW RTN 1 N/A
2 W1 BN/BG 0.80 WASHER FLUID LEVEL SWITCH SENSE N/A
