Sensor-Vacuum Pressure (Standard) Connector End View (D1663A)

Harness-Family: Dash

Color: GRAY

Gender: FEMALE

Part Number: 13511996_15418545

Part Description: Not Available

Connector No: D1663A

Option: Standard

Repair Kit Part Number: 68148104AA

Cavity Count: 3

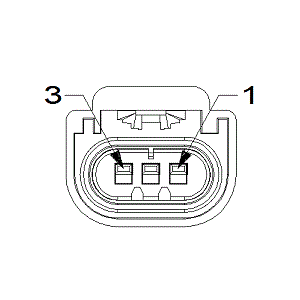

Fig 1: Sensor-Vacuum Pressure Connector End View (Standard)

Courtesy of CHRYSLER

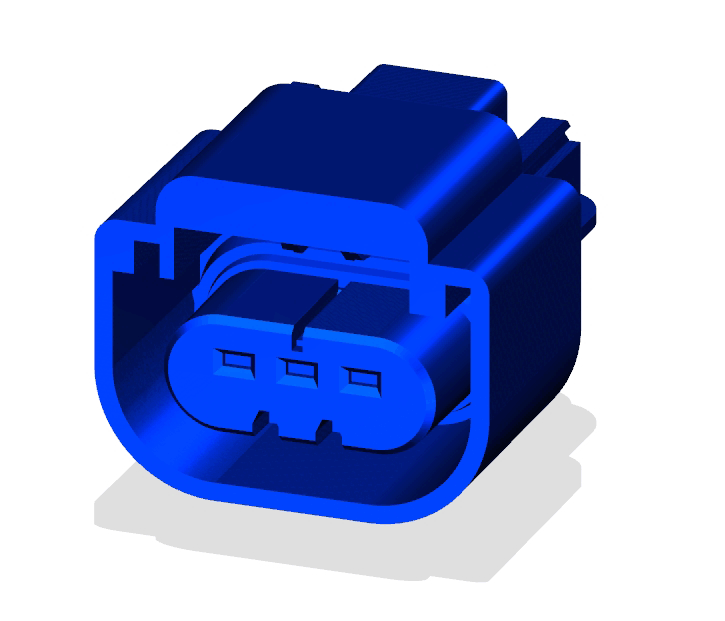

Fig 2: Sensor-Vacuum Pressure Isometric View (Standard)

Courtesy of CHRYSLER

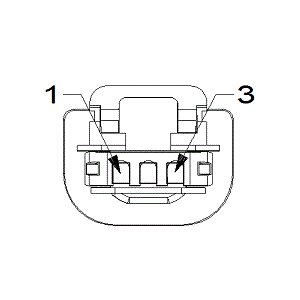

Fig 3: Sensor-Vacuum Pressure Wire Insertion View (Standard)

Courtesy of CHRYSLER

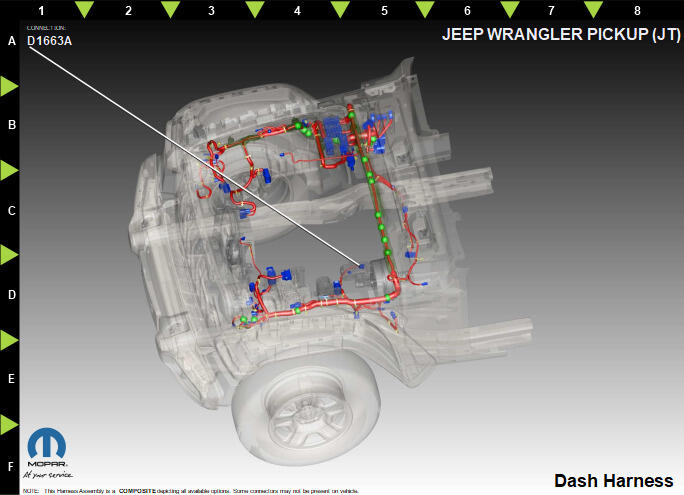

Fig 4: Sensor-Vacuum Pressure Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	B32	DG/OG	0.35	VACUUM PRESSURE SENSOR SIGNAL	N/A
2	B33	DG/BG	0.35	VACUUM PRESSURE SENSOR RETURN	N/A
3	B31	DG/DB	0.35	VACUUM PRESSURE SENSOR SUPPLY	N/A
