Sensor-Swirl Valve Position 1 (Standard) Connector End View (D2853A)

Harness-Family: DIESEL_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 1/11586/97

Part Description: Not Available

Connector No: D2853A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

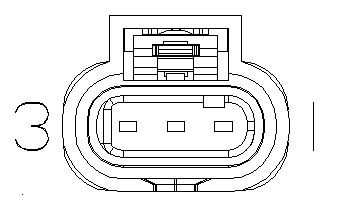

Fig 1: Sensor-Swirl Valve Position 1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Swirl Valve Position 1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N121	RD/GN	0.50	SWIRL VALVE POSITION SENSOR 1 5-VOLT SUPPLY	N/A
2	N118	YE/RD	0.50	SWIRL VALVE POSITION SENSOR 1 SIGNAL	N/A
3	N122	BK/RD	0.50	SWIRL VALVE POSITION SENSOR 1 RETURN	N/A
