Sensor-Sun (Standard) Connector End View (D1561A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1-929170-4

Part Description: Not Available

Connector No: D1561A

Option: Standard

Repair Kit Part Number: 68080566AA

Cavity Count: 4

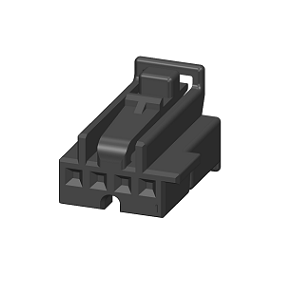

Fig 1: Sensor-Sun Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Sun Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Sun Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Sensor-Sun Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L24	WH/VT	0.35	AUTO HEADLAMPS SIGNAL	N/A
2	G39	VT/BU	0.35	SUN SENSOR SIGNAL 1	N/A
3	G139	VT/OG	0.35	SUN SENSOR SIGNAL 2	N/A
4	G939	VT/DB	0.35	SENSOR GROUND	N/A
