Sensor-Seat Track Position-Passenger (Standard) Connector End View (D1601A)

Harness-Family: Seat_Cushion_Pass

Color: GRAY

Gender: FEMALE

Part Number: 1438426-3

Part Description: CONNECTOR ASSEMBLY

Connector No: D1601A

Option: Standard

Repair Kit Part Number: 68057307AA

Cavity Count: 2

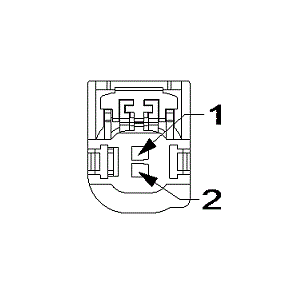

Fig 1: Sensor-Seat Track Position-Passenger Connector End View (Standard)

Courtesy of CHRYSLER

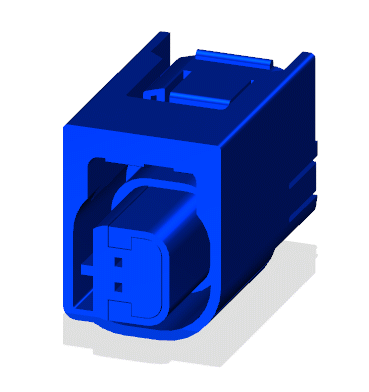

Fig 2: Sensor-Seat Track Position-Passenger Isometric View (Standard)

Courtesy of CHRYSLER

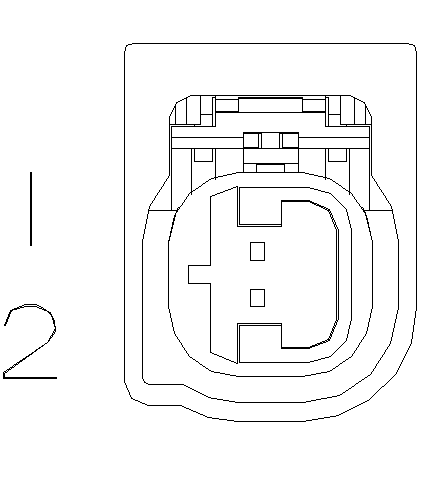

Fig 3: Sensor-Seat Track Position-Passenger Wire Insertion View (Standard)

Courtesy of CHRYSLER

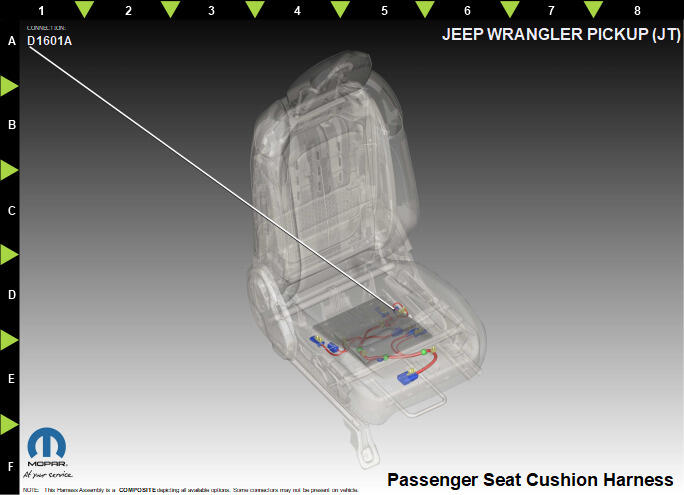

Fig 4: Sensor-Seat Track Position-Passenger Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R730	BU/BK	0.50	PASSENGER SEAT DETECTION RETURN	N/A
2	R264	VT/BU	0.50	PASSENGER SEAT POSITION SENSOR VOLTAGE	N/A
