Sensor-Seat Track Position-Driver (Standard) Connector End View (D3174A)

Harness-Family: Seat_Cushion_Driver

Color: GRAY

Gender: FEMALE

Part Number: 1438426-3

Part Description: CONNECTOR ASSEMBLY

Connector No: D3174A

Option: Standard

Repair Kit Part Number: 68057307AA

Cavity Count: 2

Fig 1: Sensor-Seat Track Position-Driver Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Seat Track Position-Driver Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Seat Track Position-Driver Wire Insertion View (Standard)

Courtesy of CHRYSLER

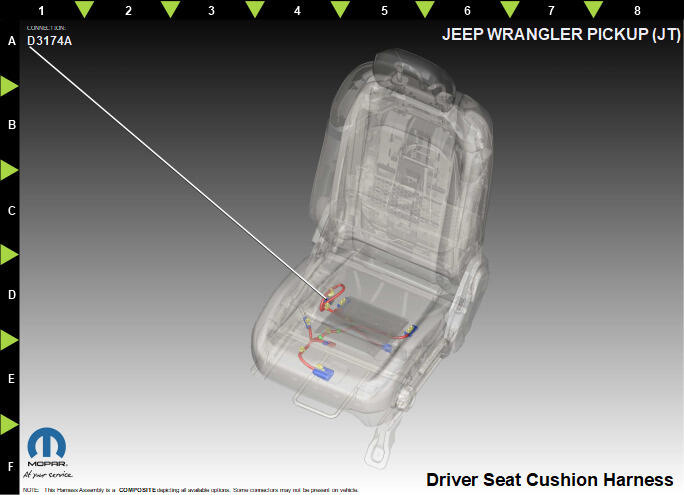

Fig 4: Sensor-Seat Track Position-Driver Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R729	GN/BK	0.50	DRIVER SEAT DETECTION RETURN	N/A
2	R263	BU/VT	0.50	DRIVER SEAT POSITION SENSOR VOLTAGE	N/A
