Sensor-Particulate Matter (Standard) Connector End View (D2800A)

Harness-Family: Chassis_RT

Color: BLACK

Gender: FEMALE

Part Number: 1-1718645-1

Part Description: Not Available

Connector No: D2800A

Option: Standard

Repair Kit Part Number: 68602032AA

Cavity Count: 4

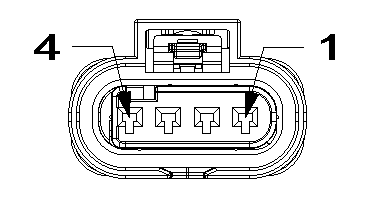

Fig 1: Sensor-Particulate Matter Connector End View (Standard)
GCWD1006533Courtesy of CHRYSLER

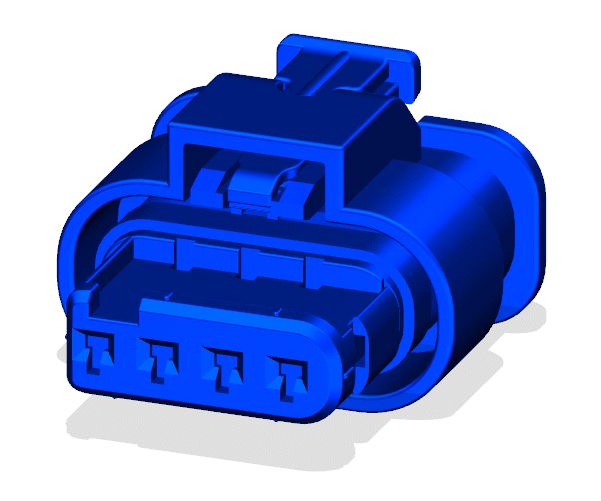

Fig 2: Sensor-Particulate Matter Isometric View (Standard)
GCWD1090309Courtesy of CHRYSLER

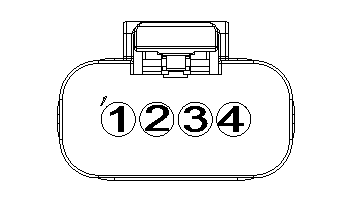

Fig 3: Sensor-Particulate Matter Wire Insertion View (Standard)
GCWD1008860Courtesy of CHRYSLER
Fig 4: Sensor-Particulate Matter Component Location View (Standard)
GCWD1318557Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z906 BK 0.50 GROUND N/A
2 D468 GY/WH 0.35 PRIVATE CAN (-) N/A
3 D469 GY 0.35 PRIVATE CAN (+) N/A
4 F205 PK 0.35 FUSED SCR RELAY 2 OUTPUT N/A
