Sensor-Park Assist 2 (Standard) Connector End View (D1588A)

Harness-Family: FRONT BUMPER

Color: BLACK

Gender: FEMALE

Part Number: 805-121-521

Part Description: Not Available

Connector No: D1588A

Option: Standard

Repair Kit Part Number: 68364262AB

Cavity Count: 3

Fig 1: Sensor-Park Assist 2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Park Assist 2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Park Assist 2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

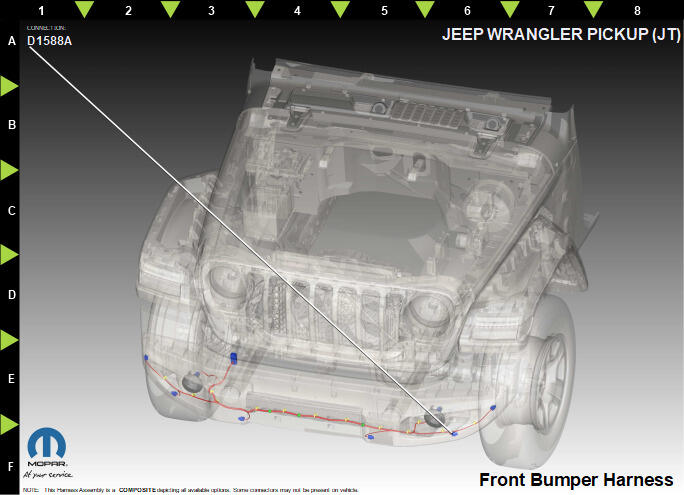

Fig 4: Sensor-Park Assist 2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X702	GY/BU	0.35	FRONT PARK ASSIST SENSOR SUPPLY	N/A
2	D705	WH/OG	0.50	PARK ASSIST SIGNAL 2	N/A
3	X751	GY	0.35	FRONT PARK ASSIST SENSOR GROUND	N/A
