Sensor-Panel Duct Temperature-Right (Standard) Connector End View (D2840A)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 12047662

Part Description: INSULATOR

Connector No: D2840A

Option: Standard

Repair Kit Part Number: 68272954AA

Cavity Count: 2

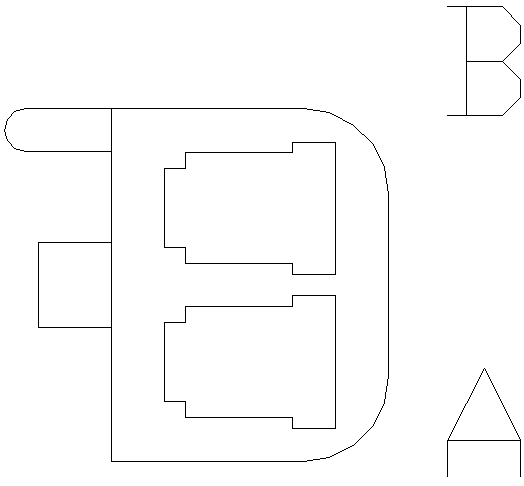

Fig 1: Sensor-Panel Duct Temperature-Right Connector End View (Standard)
GCWD1006462Courtesy of CHRYSLER

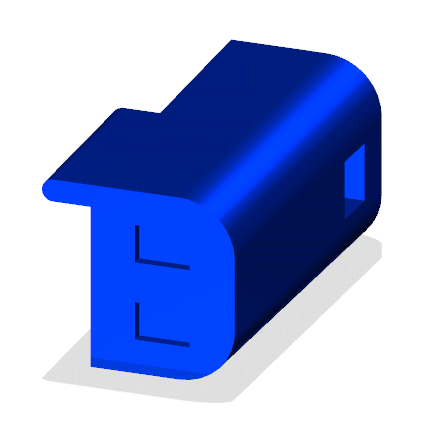

Fig 2: Sensor-Panel Duct Temperature-Right Isometric View (Standard)
GCWD1088937Courtesy of CHRYSLER

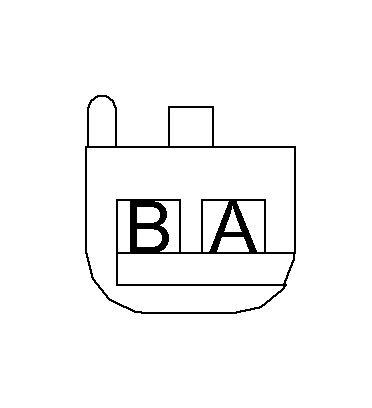

Fig 3: Sensor-Panel Duct Temperature-Right Wire Insertion View (Standard)
GCWD1009110Courtesy of CHRYSLER

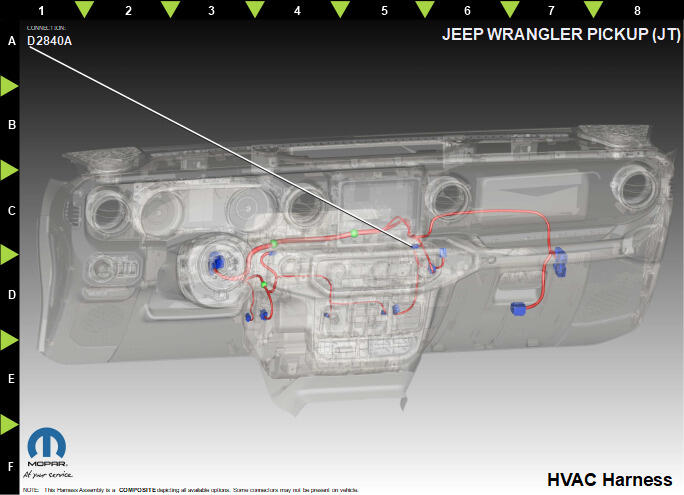

Fig 4: Sensor-Panel Duct Temperature-Right Component Location View (Standard)
GCWD1318348Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A C919 BU/BK 0.35 TEMP SNSR COMMON RTN N/A
B C134 OG/GY 0.35 RIGHT PANEL TEMPERATURE SENSOR SIGNAL N/A
