Sensor-Panel Duct Temperature-Left (Standard) Connector End View (D2841A)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 12047662

Part Description: INSULATOR

Connector No: D2841A

Option: Standard

Repair Kit Part Number: 68272954AA

Cavity Count: 2

Fig 1: Sensor-Panel Duct Temperature-Left Connector End View (Standard)
GCWD1006462Courtesy of CHRYSLER
Fig 2: Sensor-Panel Duct Temperature-Left Isometric View (Standard)
GCWD1088937Courtesy of CHRYSLER
Fig 3: Sensor-Panel Duct Temperature-Left Wire Insertion View (Standard)
GCWD1009110Courtesy of CHRYSLER

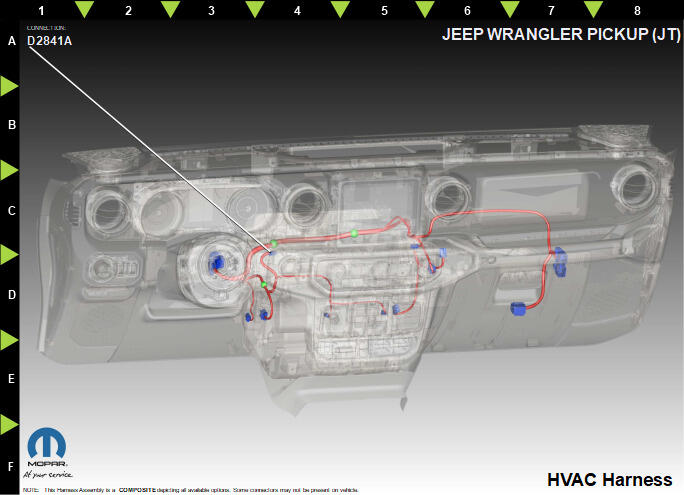

Fig 4: Sensor-Panel Duct Temperature-Left Component Location View (Standard)
GCWD1318341Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
B C162 BG/GY 0.35 LEFT PANEL TEMPERATURE SENSOR SIGNAL N/A
A C919 BU/BK 0.35 TEMP SNSR COMMON RTN N/A
