Sensor-Oxygen 2/1 (Standard) Connector End View (D1541A)

Harness-Family: Powertrain

Color: BLACK

Gender: MALE

Part Number: 34899-4080

Part Description: Not Available

Connector No: D1541A

Option: Standard

Repair Kit Part Number: 68510464AA

Cavity Count: 4

Fig 1: Sensor-Oxygen 2/1 Connector End View (Standard)
GCWD1010725Courtesy of CHRYSLER
Fig 2: Sensor-Oxygen 2/1 Isometric View (Standard)
GCWD1010127Courtesy of CHRYSLER

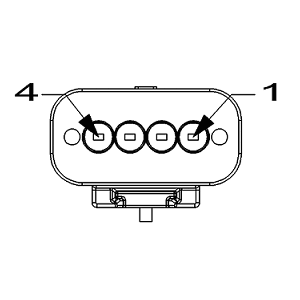

Fig 3: Sensor-Oxygen 2/1 Wire Insertion View (Standard)
GCWD1010376Courtesy of CHRYSLER

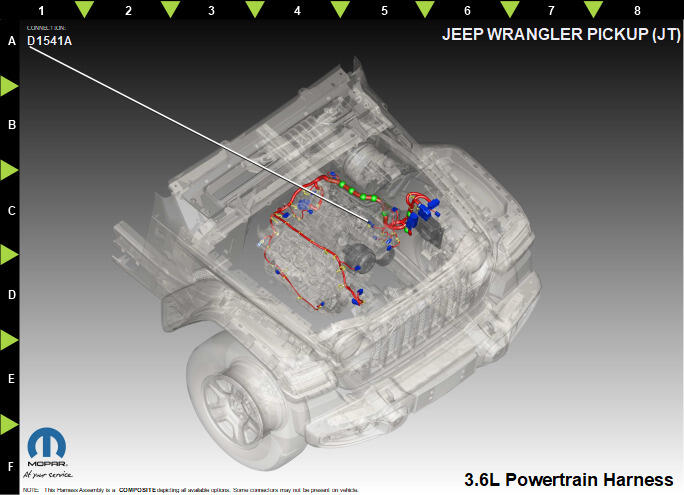

Fig 4: Sensor-Oxygen 2/1 Component Location View (Standard)
GCWD1318521Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K199 BN/VT 0.75 O2 2/1 HEATER CONTROL N/A
2 Z909 BK 0.75 GROUND N/A
3 K902 BN/DG 0.75 O2 RETURN (UPSTREAM) N/A
4 K43 DB/GN 0.75 O2 2/1 SIGNAL N/A
