Sensor-Oxygen 1/1 (Standard) Connector End View (D1539A)

Harness-Family: Chassis_RT

Color: GRAY

Gender: MALE

Part Number: 34899-4083

Part Description: Not Available

Connector No: D1539A

Option: Standard

Repair Kit Part Number: 68528039AA

Cavity Count: 4

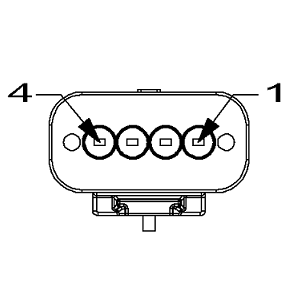

Fig 1: Sensor-Oxygen 1/1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Oxygen 1/1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Oxygen 1/1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Sensor-Oxygen 1/1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K99	BN/GN	0.75	O2 1/1 HEATER CONTROL	N/A
2	Z909	BK	0.75	GROUND	N/A
3	K902	BN/DG	0.75	O2 RETURN (UPSTREAM)	N/A
4	K41	DB/BU	0.75	O2 1/1 SIGNAL	N/A
