Sensor-Oil Pressure (Standard) Connector End View (D2929A)

Harness-Family: Engine_Diesel1

Color: BLACK

Gender: FEMALE

Part Number: 1-1456426-5

Part Description: Not Available

Connector No: D2929A

Option: Standard

Repair Kit Part Number: 68148103AA

Cavity Count: 4

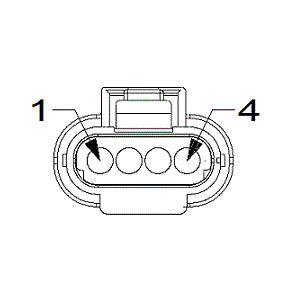

Fig 1: Sensor-Oil Pressure Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Oil Pressure Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Oil Pressure Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Sensor-Oil Pressure Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G924	BK	0.50	EOT SENSOR GROUND	N/A
2	G6	DB/RD	0.50	OIL PRESSURE SIGNAL	N/A
3	K110	WH/GN	0.50	OIL PRESSURE SENSOR 5 VOLT SUPPLY	N/A
4	G224	OG/WH	0.50	EOT SIGNAL	N/A
