Sensor-Oil Pressure (Standard) Connector End View (D1543A)

Harness-Family: KOP_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 805-121-521

Part Description: Not Available

Connector No: D1543A

Option: Standard

Repair Kit Part Number: 68364262AB

Cavity Count: 3

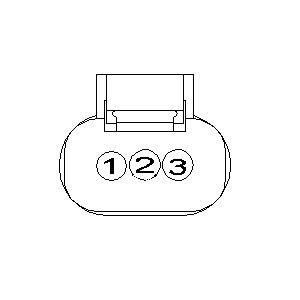

Fig 1: Sensor-Oil Pressure Connector End View (Standard)

Courtesy of CHRYSLER

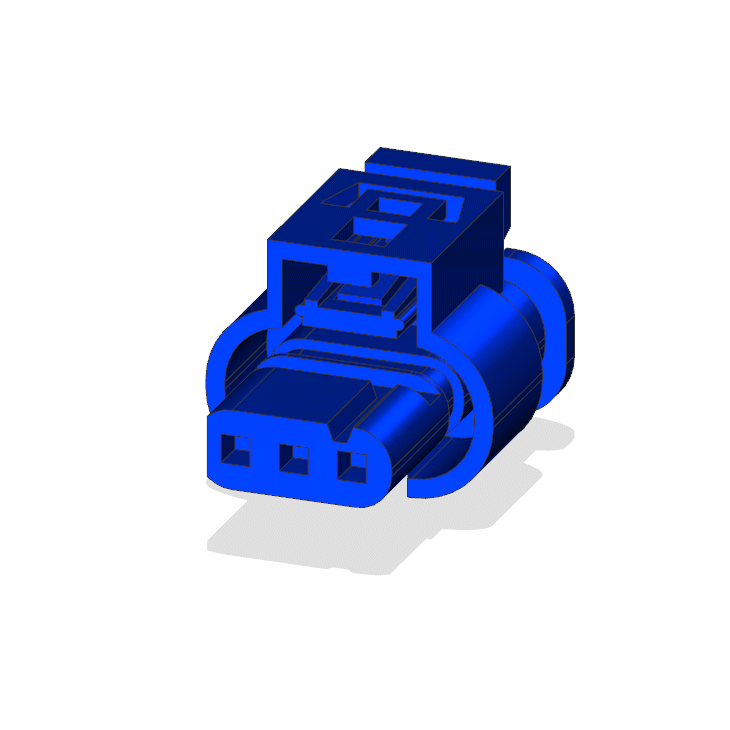

Fig 2: Sensor-Oil Pressure Isometric View (Standard)

Courtesy of CHRYSLER

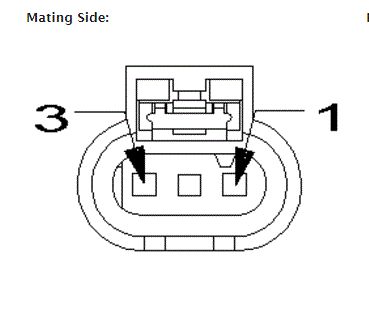

Fig 3: Sensor-Oil Pressure Wire Insertion View (Standard)

Courtesy of CHRYSLER

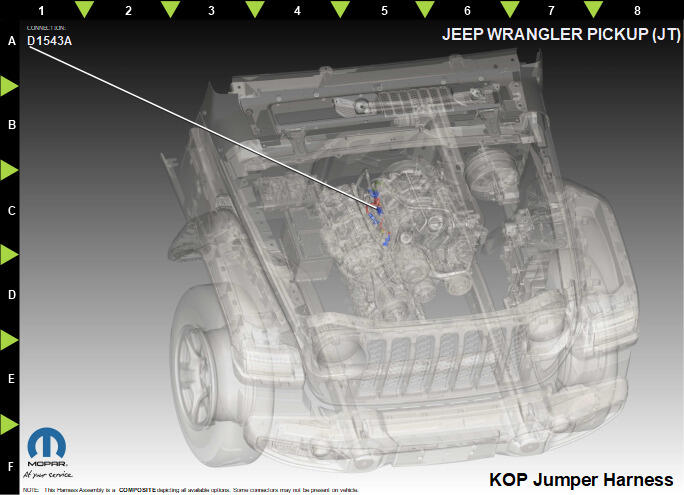

Fig 4: Sensor-Oil Pressure Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G6	VT	0.35	OIL PRESSURE SIGNAL	N/A
2	K900	BN/GY	0.35	SENSOR GROUND	N/A
3	K855	BN/OG	0.35	5 VOLT SUPPLY	N/A
