Sensor-Occupant Detection Right Rear Seat (Standard) Connector End View (D3271A)

Harness-Family: Seat_Rear_Right

Color: BLACK

Gender: FEMALE

Part Number: 15514573

Part Description: Not Available

Connector No: D3271A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Sensor-Occupant Detection Right Rear Seat Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Occupant Detection Right Rear Seat Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Occupant Detection Right Rear Seat Wire Insertion View (Standard)

Courtesy of CHRYSLER

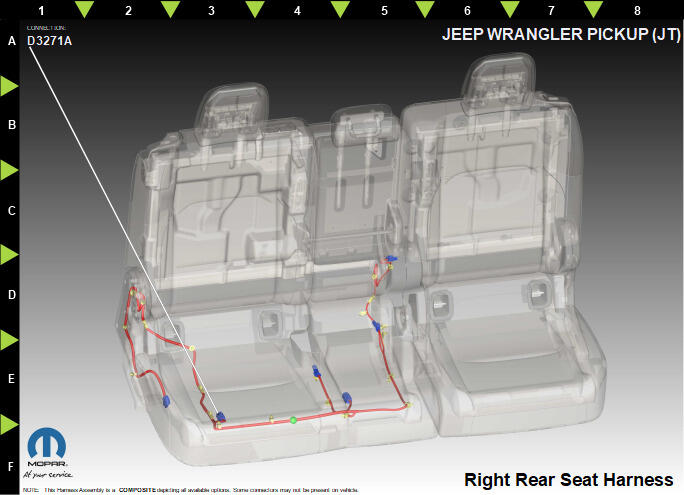

Fig 4: Sensor-Occupant Detection Right Rear Seat Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R92	GN/BU	0.75	REAR SEAT OCCUPANT DETECTION SENSE RIGHT	N/A
2	R730	BU/BK	0.50	PASSENGER SEAT DETECTION RETURN	N/A
