Sensor-Occupant Detection (Standard) Connector End View (D2457A)

Harness-Family: Seat_Cushion_Pass

Color: BLACK

Gender: FEMALE

Part Number: 15514573

Part Description: Not Available

Connector No: D2457A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

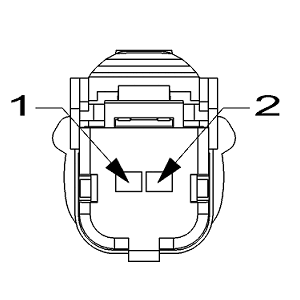

Fig 1: Sensor-Occupant Detection Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Occupant Detection Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Occupant Detection Wire Insertion View (Standard)

Courtesy of CHRYSLER

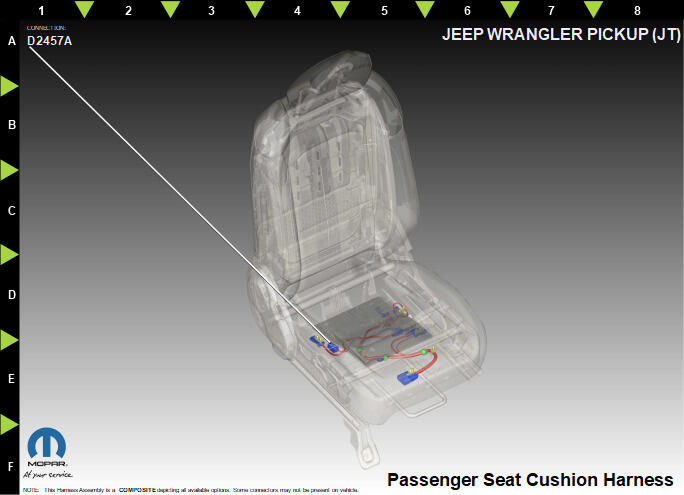

Fig 4: Sensor-Occupant Detection Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R283	BU/DG	0.50	PASSENGER SEAT OCCUPANT DETECTION SIGNAL	N/A
2	R730	BU/BK	0.50	PASSENGER SEAT DETECTION RETURN	N/A
