Sensor-Mass Air Flow (Standard) Connector End View (D1538A)

Harness-Family: Engine_Diesel1

Color: BLACK

Gender: FEMALE

Part Number: 805-122-581

Part Description: Not Available

Connector No: D1538A

Option: Standard

Repair Kit Part Number: 68396618AA

Cavity Count: 4

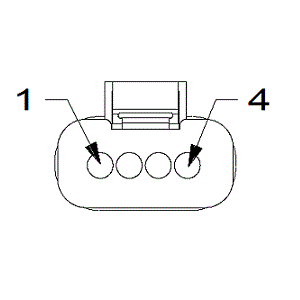

Fig 1: Sensor-Mass Air Flow Connector End View (Standard)

Courtesy of CHRYSLER

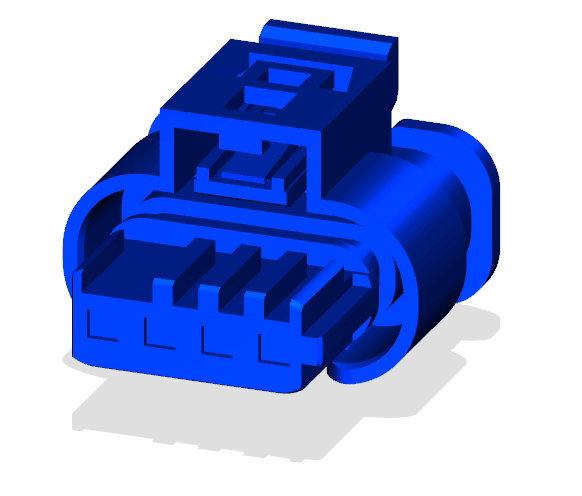

Fig 2: Sensor-Mass Air Flow Isometric View (Standard)

Courtesy of CHRYSLER

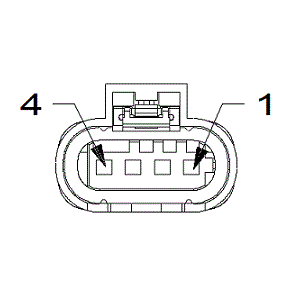

Fig 3: Sensor-Mass Air Flow Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Sensor-Mass Air Flow Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F343	GY/RD	0.50	FUSED ASD RELAY OUTPUT	N/A
2	Z909	BK	0.50	GROUND	N/A
3	K142	DB	0.50	MASS AIR FLOW SIGNAL 2	N/A
4	D509	OG	0.50	LIN BUS	N/A
