Sensor-Manifold Absolute Pressure (Standard) Connector End View (D1537A)

Harness-Family: Powertrain

Color: NATURAL

Gender: FEMALE

Part Number: 4-1488991-2

Part Description: Natural Inner Housing

Connector No: D1537A

Option: Standard

Repair Kit Part Number: 68137870AA

Cavity Count: 3

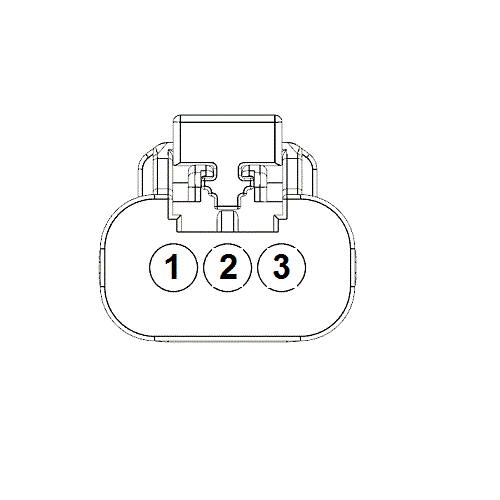

Fig 1: Sensor-Manifold Absolute Pressure Connector End View (Standard)

Courtesy of CHRYSLER

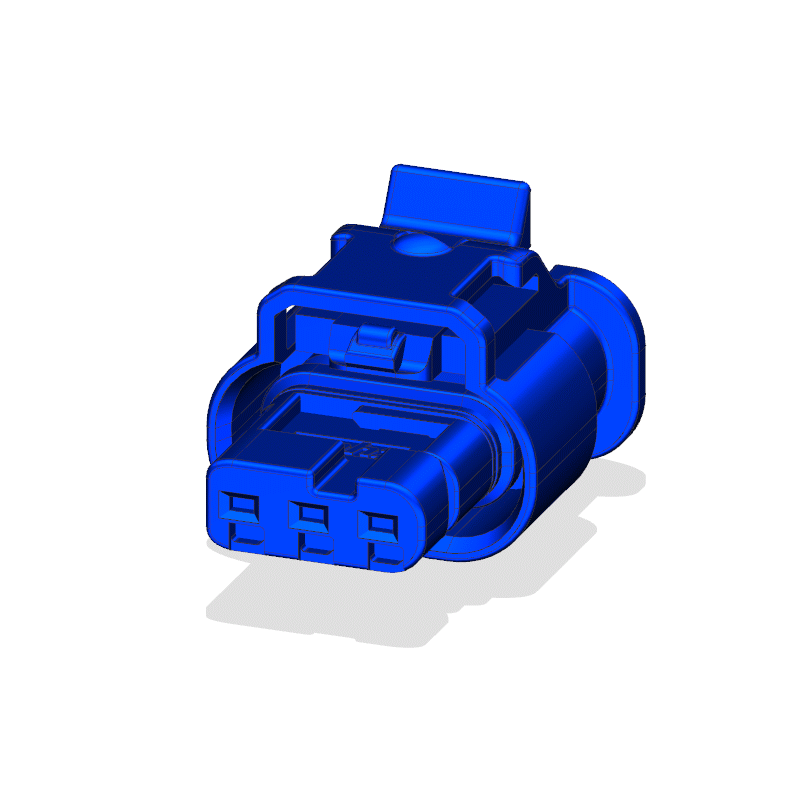

Fig 2: Sensor-Manifold Absolute Pressure Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Manifold Absolute Pressure Wire Insertion View (Standard)

Courtesy of CHRYSLER

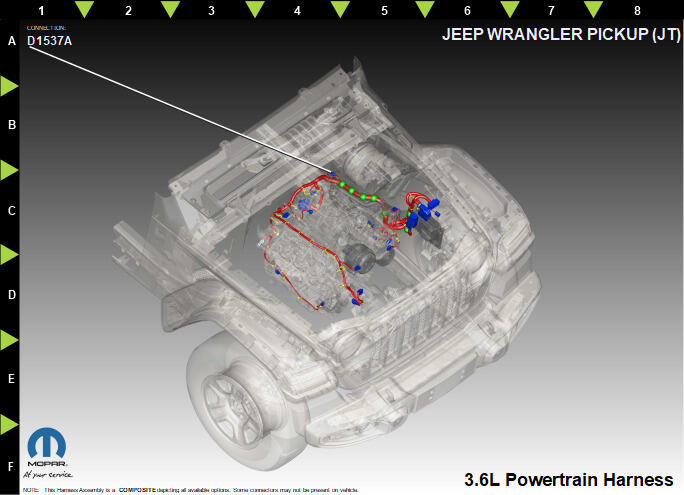

Fig 4: Sensor-Manifold Absolute Pressure Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K1	VT/BN	0.50	MAP SIGNAL	N/A
2	K900	DB/DG	0.50	SENSOR GROUND	N/A
3	F856	YE/PK	0.50	5 VOLT SUPPLY	N/A
