Sensor-Intelligent Battery C3 (LHD) Connector End View (D2550C)

Harness-Family: Battery

Color: NA

Gender: FEMALE

Part Number: R8981

Part Description: Not Available

Connector No: D2550C

Option: LHD

Repair Kit Part Number: Not Available

Cavity Count: 1

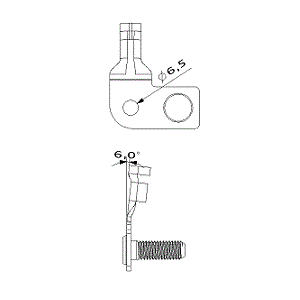

Fig 1: Sensor-Intelligent Battery C3 Connector End View (LHD)
GCWD1318332Courtesy of CHRYSLER

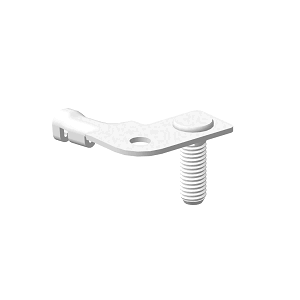

Fig 2: Sensor-Intelligent Battery C3 Isometric View (LHD)
GCWD1319090Courtesy of CHRYSLER

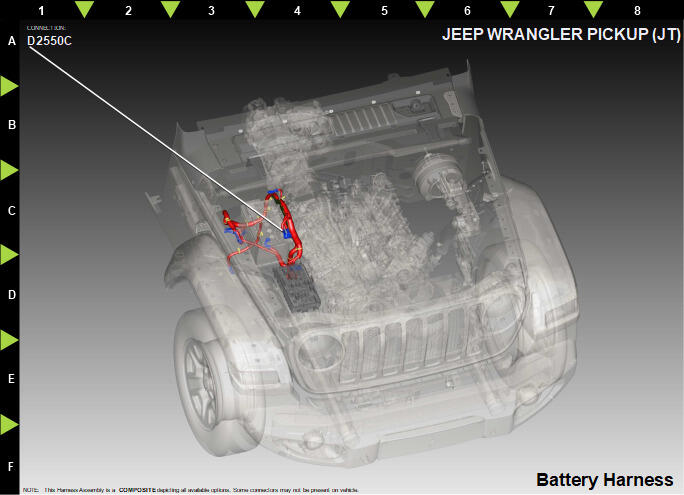

Fig 3: Sensor-Intelligent Battery C3 Component Location View (LHD)
GCWD1318597Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z802 BK 20.0 GROUND N/A
