Sensor-Intelligent Battery C2 (LHD) Connector End View (D2550B)

Harness-Family: Battery

Color: NA

Gender: FEMALE

Part Number: R8620NB-M8

Part Description: Not Available

Connector No: D2550B

Option: LHD

Repair Kit Part Number: Not Available

Cavity Count: 1

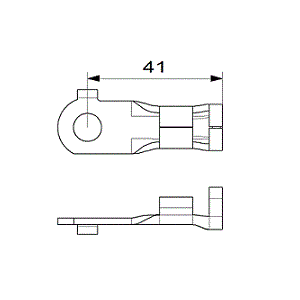

Fig 1: Sensor-Intelligent Battery C2 Connector End View (LHD)
GCWD1238362Courtesy of CHRYSLER

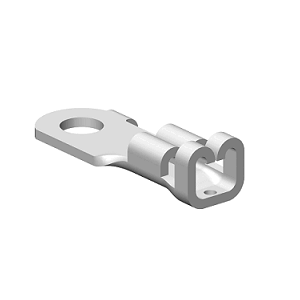

Fig 2: Sensor-Intelligent Battery C2 Isometric View (LHD)
GCWD1318656Courtesy of CHRYSLER

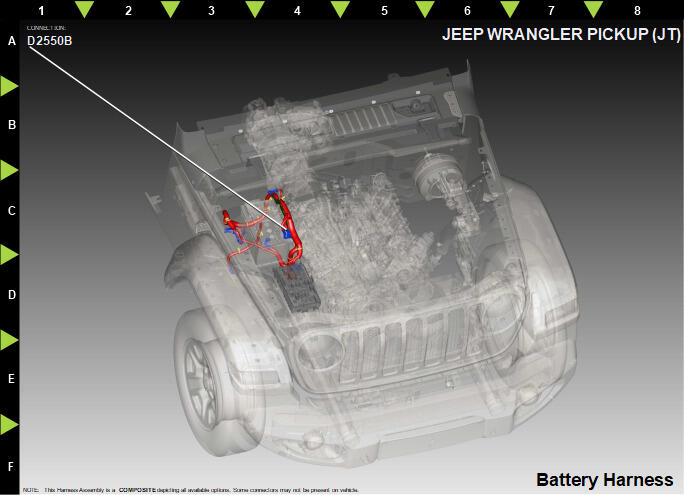

Fig 3: Sensor-Intelligent Battery C2 Component Location View (LHD)
GCWD1318598Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z901 BK 35.0 GROUND N/A
