Sensor-Intelligent Battery C1 (Standard) Connector End View (D2550A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 1-967644-1

Part Description: INSULATOR

Connector No: D2550A

Option: Standard

Repair Kit Part Number: 05083213AA

Cavity Count: 2

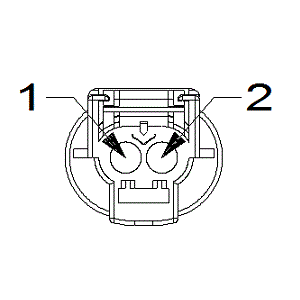

Fig 1: Sensor-Intelligent Battery C1 Connector End View (Standard)

Courtesy of CHRYSLER

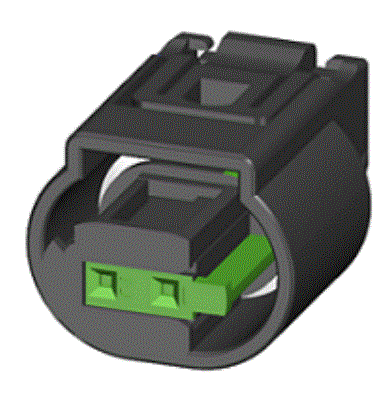

Fig 2: Sensor-Intelligent Battery C1 Isometric View (Standard)

Courtesy of CHRYSLER

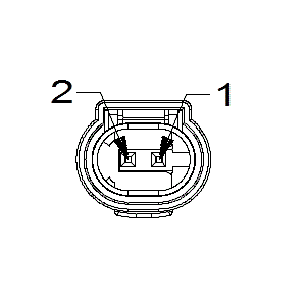

Fig 3: Sensor-Intelligent Battery C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

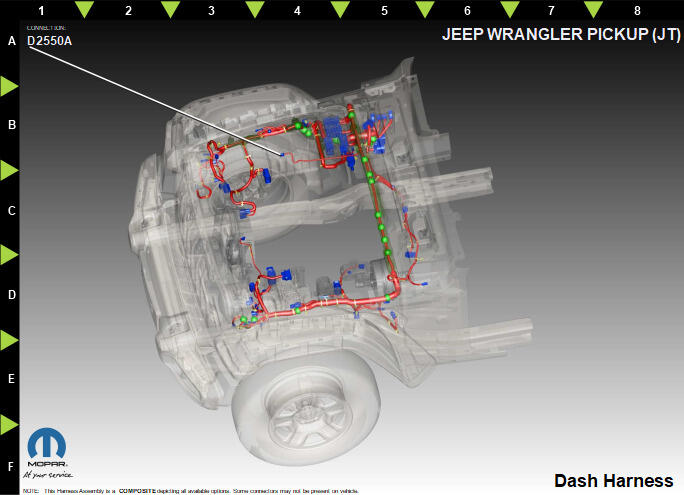

Fig 4: Sensor-Intelligent Battery C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D401	OG	0.50	LIN BUS CBC 1	N/A
2	A916	RD	0.50	FUSED B(+)	N/A
