Sensor-Inlet Air Temperature (Standard) Connector End View (D1586A)

Harness-Family: Engine_Diesel1

Color: BLACK

Gender: FEMALE

Part Number: 2098557-4

Part Description: INNER HOUSING BROWN

Connector No: D1586A

Option: Standard

Repair Kit Part Number: 68337842AA

Cavity Count: 2

Fig 1: Sensor-Inlet Air Temperature Connector End View (Standard)

Courtesy of CHRYSLER

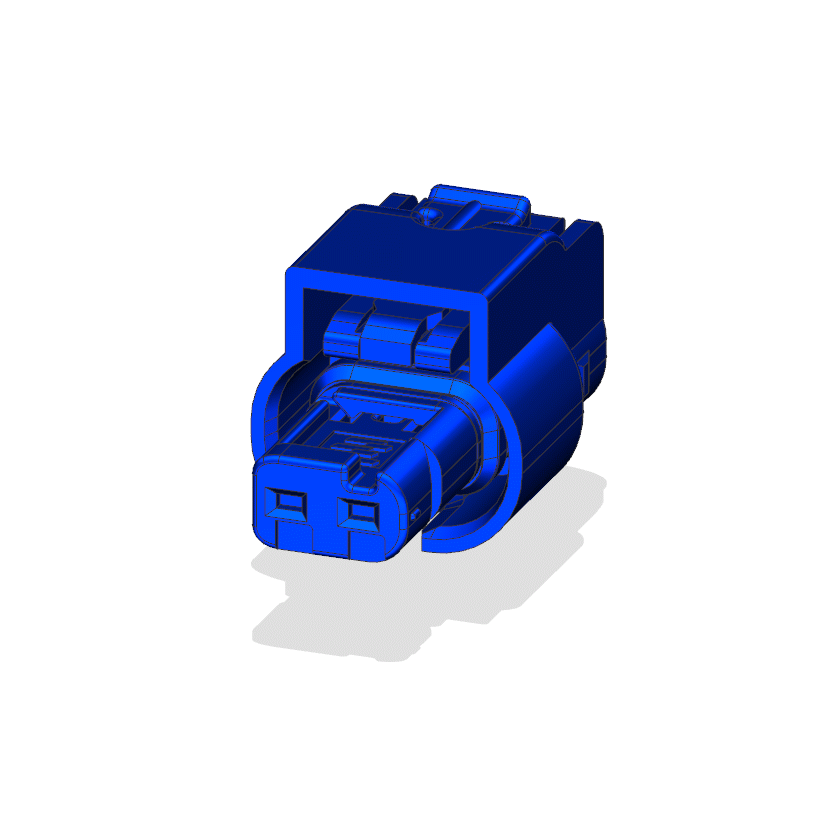

Fig 2: Sensor-Inlet Air Temperature Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Inlet Air Temperature Wire Insertion View (Standard)

Courtesy of CHRYSLER

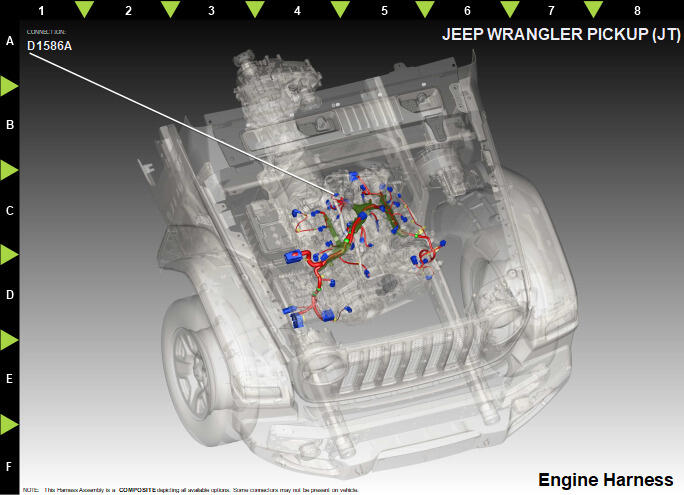

Fig 4: Sensor-Inlet Air Temperature Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K69	DB/GN	0.50	TEMP SIGNAL	N/A
2	K64	BK/OG	0.50	SENSOR GROUND	N/A
