Sensor-In Car Temperature (Standard) Connector End View (D2676A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 13654871

Part Description: Not Available

Connector No: D2676A

Option: Standard

Repair Kit Part Number: 68496343AA

Cavity Count: 4

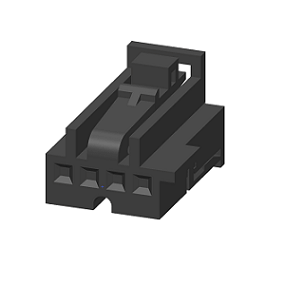

Fig 1: Sensor-In Car Temperature Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-In Car Temperature Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-In Car Temperature Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Sensor-In Car Temperature Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	C36	BU/BN	0.35	SNSR IN CAR TEMP SIG	N/A
2	C37	BU/OG	0.35	SNSR IN CAR TEMP RTN	N/A
3	F925	PK/YE	0.35	FUSED IGNITION RUN CONTROL OUTPUT	N/A
4	Z911	BK	0.35	GROUND	EXCEPT EXPORT
4	Z911	BK/OG	0.35	GROUND	EXPORT
