Sensor-Gear Position (Standard) Connector End View (D3276A)

Harness-Family: Transmission

Color: BLACK

Gender: FEMALE

Part Number: 2-1718645-1

Part Description: Not Available

Connector No: D3276A

Option: Standard

Repair Kit Part Number: 68528140AA

Cavity Count: 4

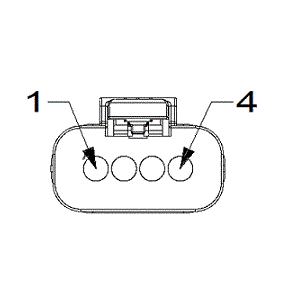

Fig 1: Sensor-Gear Position Connector End View (Standard)

Courtesy of CHRYSLER

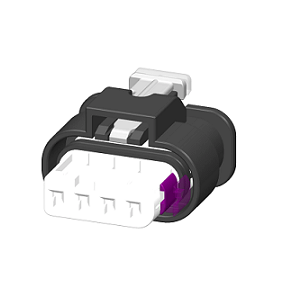

Fig 2: Sensor-Gear Position Isometric View (Standard)

Courtesy of CHRYSLER

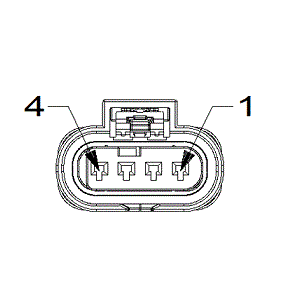

Fig 3: Sensor-Gear Position Wire Insertion View (Standard)

Courtesy of CHRYSLER

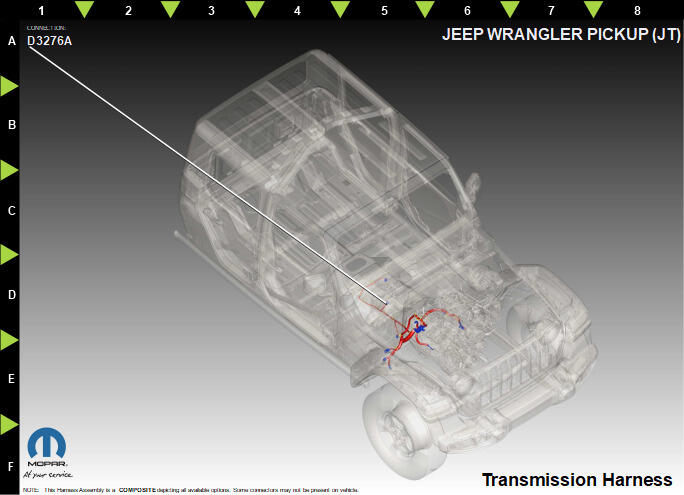

Fig 4: Sensor-Gear Position Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	T127	YE/GN	0.75	GEAR POSITION SENSOR SIGNAL 2	N/A
2	K859	BN/DB	0.75	5 VOLT SUPPLY	N/A
3	T122	DG	0.75	GEAR POSITION SENSOR SIGNAL	N/A
4	K917	BN/BG	0.75	SENSOR GROUND	N/A
