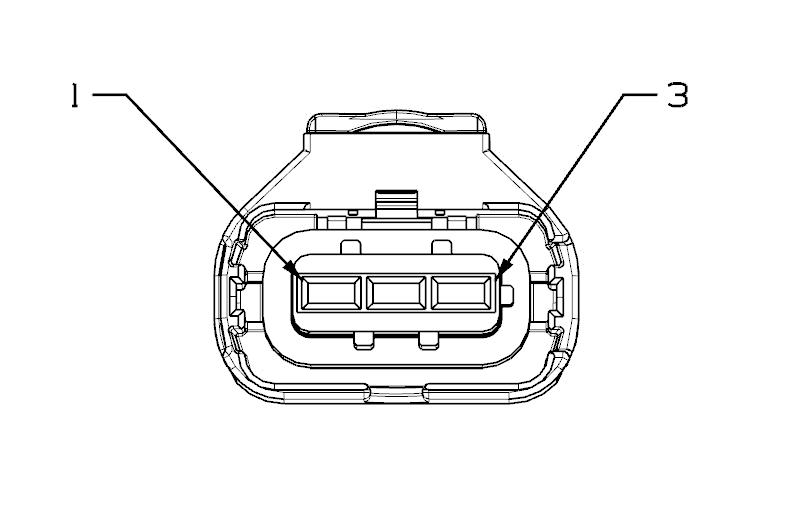

Sensor-Fuel Rail Pressure (Standard) Connector End View (D1518A)
Harness-Family: Engine_Diesel1
Color: BLACK
Gender: FEMALE
Part Number: 1/16148/87
Part Description: Not Available

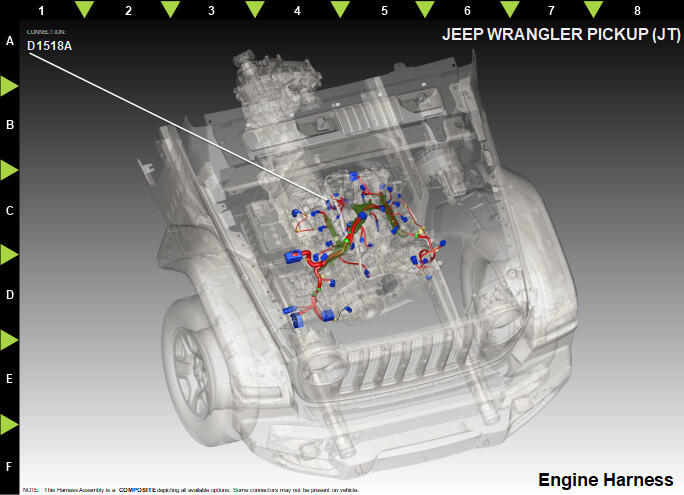

Connector No: D1518A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | K359 | GY/BK | 0.50 | SENSOR GROUND | N/A |
| 2 | K181 | WH/RD | 0.50 | FUEL PRESSURE SIGNAL | N/A |
| 3 | K350 | RD/YE | 0.50 | 5 VOLT SUPPLY | N/A |
